Technical Characteristics of Power transmission line online monitoring system

Power transmission line online monitoring system is a device specifically developed for monitoring the local meteorological environment of power transmission line corridors. Installed on power transmission towers, it monitors parameters such as wind speed, temperature, and humidity in real time, transmitting data wirelessly to support the safe operation of the power grid.

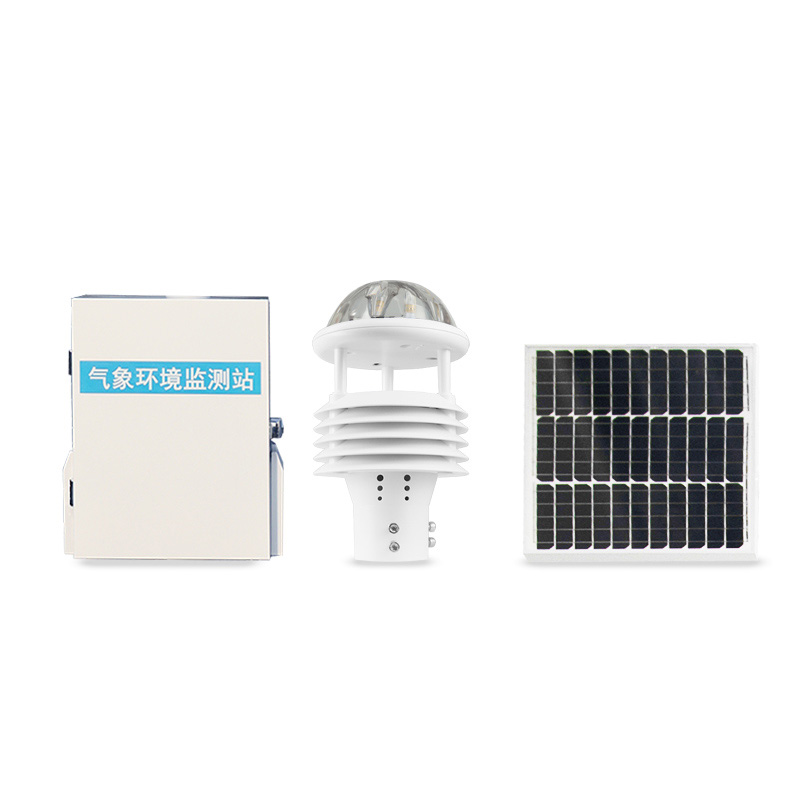

Power transmission line online monitoring system is a device specifically designed to monitor local meteorological conditions around power transmission lines. It is primarily installed at appropriate locations on power transmission towers, collecting micro-meteorological data of the line corridor through a sensor array. Monitored parameters include key meteorological elements such as wind speed, wind direction, temperature, humidity, atmospheric pressure, and precipitation. This data is transmitted to the monitoring center via a wireless communication network, providing real-time information for power grid safety management.

In power grid operation and management, this device is mainly used to prevent the impact of meteorological disasters on transmission lines. Monitoring stations are installed in special geographical areas along the transmission lines, such as canyon wind tunnels, heavy icing areas, and micro-topographic zones with complex weather conditions. By continuously monitoring wind speed changes around the lines, maintenance personnel can promptly understand the wind deflection impact on conductors and assess whether safety distances meet requirements. In winter, the temperature and humidity data provided by the monitoring station helps predict line icing conditions, providing decision-making support for de-icing operations.

The structural design of the monitoring station considers the special requirements of the power industry. The equipment features lightning protection and electromagnetic interference protection design, ensuring long-term stable operation in high-voltage electromagnetic environments. The sensors are specially calibrated to ensure measurement accuracy under complex terrain conditions. The power supply system typically uses a solar panel and battery combination to ensure continuous operation even in harsh weather conditions.

The data transmission system uses wireless communication technology, such as 4G/5G networks or dedicated wireless communication networks. Monitoring data is sent to the main station system at set intervals, and the data acquisition frequency can be adjusted as needed. When meteorological conditions change drastically, the system can activate an encrypted transmission mode to increase the data reporting frequency. The main station system parses and processes the received data, generating various statistical reports and trend charts.

When monitoring data exceeds preset thresholds, the system will issue multi-level warnings. For example, when the wind speed exceeds the line design standard, the system will send an alarm message to operation and maintenance personnel. These warning messages include the specific tower location, the value of the exceeding parameter, and the duration, helping maintenance personnel quickly locate the problem section. By combining power grid operation data, managers can assess the extent to which meteorological conditions affect power grid safety and take necessary control measures.

The long-term meteorological data collected by monitoring stations also have multiple uses. This data can be used to analyze the climatic characteristics of transmission line corridors, providing a reference for the design of new lines. By comparing meteorological data from different years, the impact of regional climate change on power grid facilities can be studied. In the event of line failures caused by meteorological disasters, monitoring data can provide supporting evidence for accident analysis.

Modern monitoring systems are developing towards multi-parameter, high-precision, and intelligent capabilities. New monitoring stations have added monitoring elements such as radiation and ultraviolet light, improving the comprehensiveness of the data. Data processing algorithms are constantly being optimized to identify abnormal changes in data and eliminate the influence of temporary interference factors. With the application of Internet of Things technology, monitoring stations and other online monitoring devices together form an intelligent monitoring system for transmission lines, providing technical support for the intelligent operation and maintenance of the power grid.
