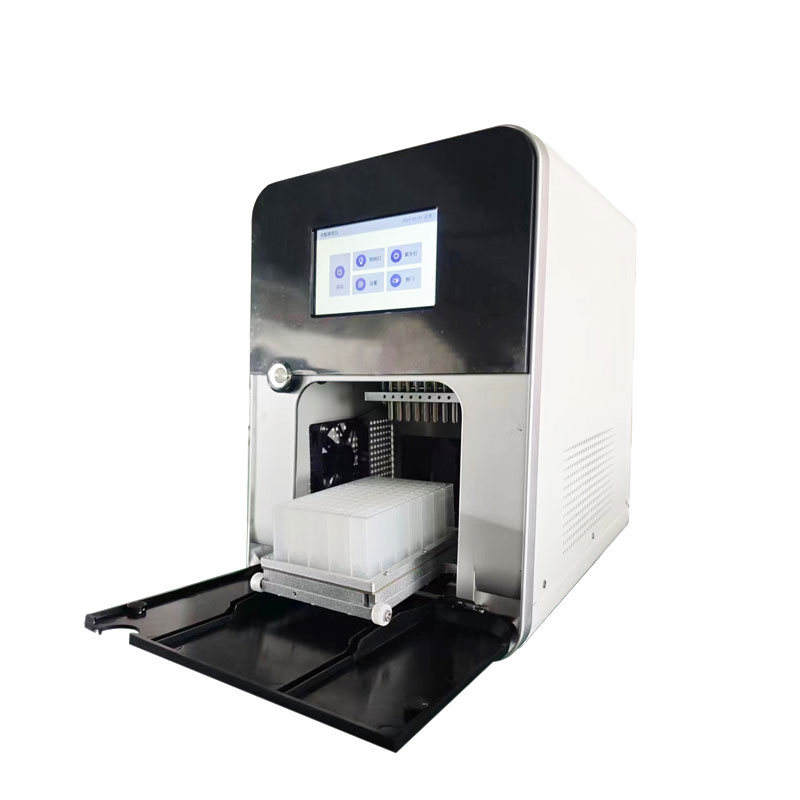

Automated DNA Extraction

Automated DNA Extraction Product Overview:

The 16-well Automated DNA Extraction extracts nucleic acids through the magnetic bead method. By selecting the corresponding kit, you can automatically separate and purify high-purity nucleic acids from a variety of sample materials such as blood, tissues, and cells. It has the advantages of strong compatibility (suitable for 16-head extraction reagents, and can also be adapted for single-head reagents), fast extraction speed, high extraction recovery rate, and easy operation. It is a powerful "assistant" for molecular biology laboratory testing and testing. . It can be widely used in scientific research, molecular diagnosis, animal and plant disease detection and other fields.

Automated DNA Extraction product features:

●Free and flexible flux

For different throughput extraction needs, you can flexibly choose a single reagent or 16 pre-packaged reagents to avoid waste of reagent consumables.

●Results are stable

Circulating magnetic beads ensure the yield & purity of nucleic acid extraction.

●Safe and reliable

Designs such as the ultraviolet disinfection box and anti-aerosol fan can effectively avoid cross-contamination and ensure test safety.

●Simple design, compact and portable

It is small in size, supports battery power supply, and is suitable for automated extraction needs in various environments such as the field and laboratory.

Automated DNA Extraction technical performance:

Processing volume: 20-1000μl

Sample throughput: 1-16

Magnetic bead recovery efficiency: >98%

Number of magnetic rods: 16

Sample processing time: 15min-60min

Purification sensitivity: positive detection rate of 100 copies of samples > 95%

Difference between purification holes (CV): CV＜3%

Consumables used: 96 deep well plate + magnetic rod set

Heating temperature: lysis: room temperature -105℃; elution: room temperature -105℃

Operation interface: 7-inch touch screen embedded integrated operation

Oscillation mixing: multi-mode and multi-speed adjustable

Reagent type: magnetic bead extraction reagent

Program management: Flexible creation, editing, application and deletion of corresponding programs

Data storage (internal program): can store ≤100 sets of programs

Exhaust method: fan

Contamination Control: Built-in UV disinfection lamp

Power supply: AC110-240V, 50Hz/60Hz, ≤500W

Overall dimensions: 335x213x347mm (L×W×H)
