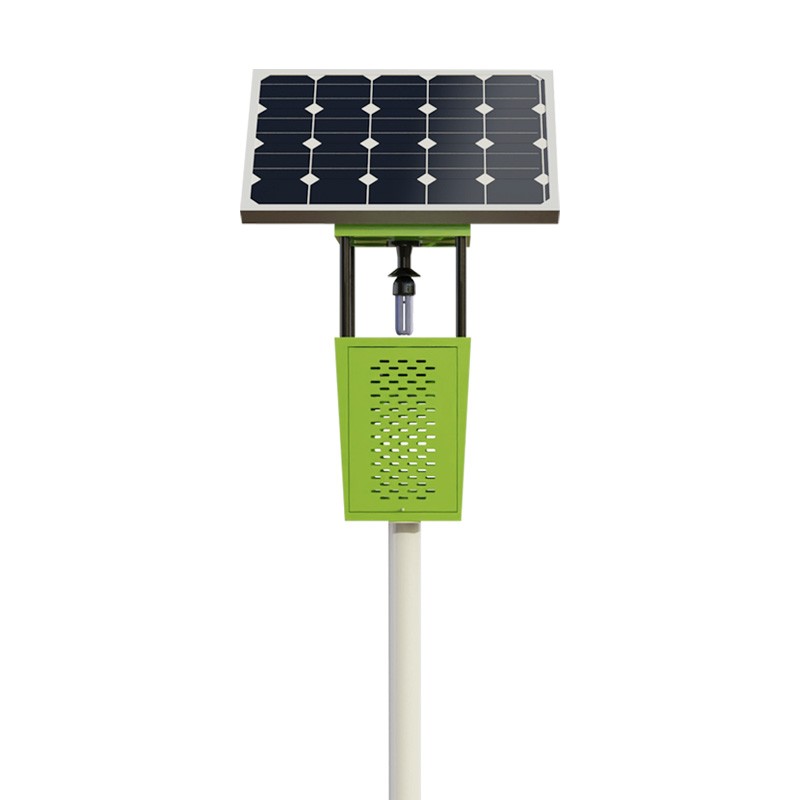

Solar-Powered Suction-Type Insect Traps: Eco-Friendly Pest Control for Farmland

Powered by solar energy, these suction-type insect traps utilize a light source to attract pests, while an integrated fan generates a negative-pressure airflow that draws the insects in, effectively eliminating them through dehydration. Designed for use in agriculture, forestry, and horticulture, these devices feature light-based and time-based control, as well as a waterproof design. They help reduce reliance on chemical pesticides and enhance the efficacy of eco-friendly pest management.

As a physical pest control tool, these solar-powered suction traps combine solar energy harvesting with a suction-based capture mechanism. They leverage the phototactic (light-attracting) nature of many pests to lure and eliminate them. Since the devices do not require an external power grid, they are ideal for deployment in remote, off-grid areas. Equipped with solar panels, the units store energy during the day to power the light source and fan at night. Once pests are drawn toward the light, the fan creates a negative-pressure vortex that pulls them into a collection container, where they are dehydrated and killed. This method is effective against a wide range of pests of various sizes.

The traps offer both light-controlled and time-controlled operating modes: the light-controlled mode allows the device to start and stop automatically based on ambient brightness, while the time-controlled mode enables users to set specific operating schedules—with communication functions remaining active even during sleep mode. The unit features a waterproof design, ensuring stable operation during rain so that pest control efforts remain uninterrupted. The device consists of a main lamp unit and a support stand; it is lightweight and easy to assemble, disassemble, and transport. The spacious collection container includes a removable mesh tray, making it simple to clear out dead insects or replace components, thereby minimizing the effort required for routine maintenance. Solar-powered, suction-type insect-killing lamps are suitable for a wide range of settings, including farmlands, orchards, vegetable gardens, woodlands, and horticultural sites, as well as for pest control in livestock farming areas and urban or rural environments. When deploying these units, the control radius can be adjusted based on the specific site: for farmlands, each lamp should cover a radius of at least 120 meters, while for woodlands, the radius should be at least 80 meters. When installed in a contiguous network, they create an effective barrier against pests. By utilizing this physical pest-control method, users can reduce the application of chemical pesticides and lower pesticide residues, aligning with the requirements for eco-friendly agricultural management. Such devices are a common component in modern, sustainable pest-control systems.
