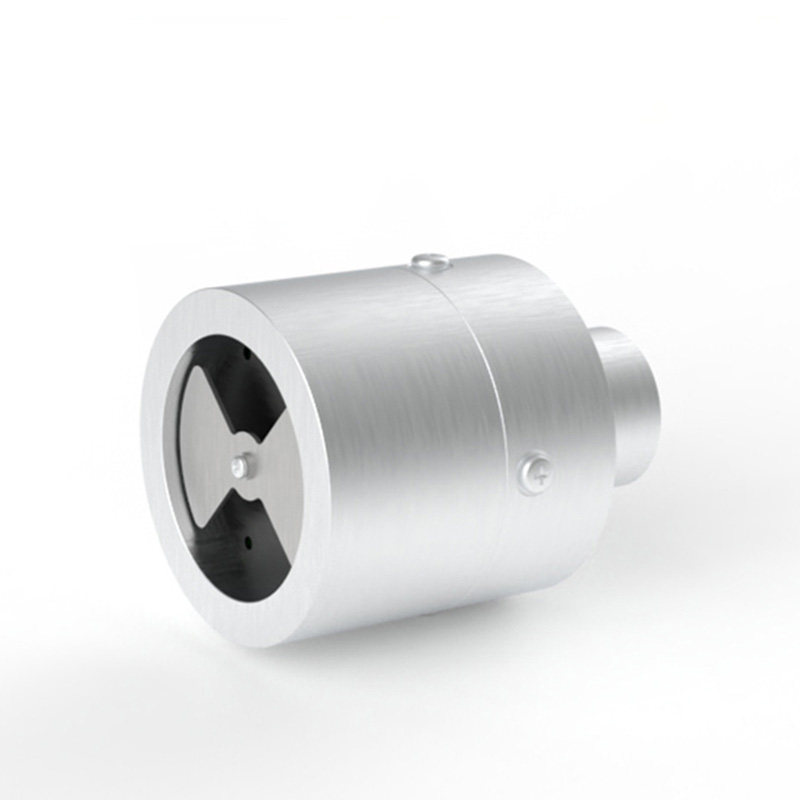

Atmospheric electric field detection sensors provide early warning of lightning strikes by continuously monitoring changes in the electric field

These sensors are atmospheric electric field monitoring devices based on the principle of electric field induction. They have a measurement range of -100kV/m to 100kV/m, an accuracy of ±0.001%F.S., and a response time of 3 seconds. Utilizing Modbus-485 communication, the devices can monitor changes in atmospheric electric field strength in real time and are widely used in scenarios such as lightning warnings at meteorological stations, lightning protection in petrochemical plants, and safety monitoring of communication base stations and power facilities.

Lightning strikes pose a continuous threat to petrochemical enterprises, communication base stations, power facilities, and high-rise buildings. Traditional lightning protection measures are primarily passive and cannot predict the likelihood and timing of lightning strikes. Electric field detection sensors provide an active monitoring method for lightning warnings by continuously monitoring real-time changes in atmospheric electric field strength. Based on the principle of electric field induction, when the amount of charge accumulated in the atmosphere reaches a certain level, the surface electric field strength changes significantly. The sensor detects these changes and triggers an early warning signal.

In terms of technical performance, the electric field detection sensor has a measurement range of -100kV/m to 100kV/m, a measurement accuracy of ±0.001%F.S., and a response time of 3 seconds. The device housing is made of 6061 aluminum alloy, operates on a 12VDC power supply, consumes only 0.5W, and supports the Modbus-485 communication protocol. For practical deployment, the device can be fixedly installed in locations such as meteorological stations, petrochemical plant areas, around communication base stations, and on the rooftops of high-rise buildings. Some electric field sensor chips developed based on MEMS technology are only 5mm in size and have already been implemented in lightning warning systems. By measuring atmospheric electric field strength and obtaining lightning location information, it can predict whether lightning will occur in a specific area within the next two hours.

In the field of meteorological monitoring, the electric field detection sensor provides meteorological departments with continuous and uninterrupted lightning activity monitoring data. By analyzing the changing trends of the atmospheric electric field, forecasters can predict the probability, intensity, and direction of lightning weather in advance and issue timely lightning warning signals. In the petrochemical and power industries, when the equipment detects that the electric field strength exceeds a preset threshold, it can trigger an audible and visual alarm, reminding on-site personnel to stop outdoor operations and shut down critical equipment, thus reducing losses to personnel and equipment caused by lightning strikes. Furthermore, in forestry, this equipment can be used to monitor lightning activity and prevent forest fires caused by lightning strikes. In agriculture, advance knowledge of thunderstorm weather helps farmers to rationally plan their fieldwork schedules.

Electric field detection sensors transform lightning protection from passive waiting to proactive early warning. Through continuous electric field data acquisition and threshold judgment, managers can obtain early warning information in the early stages of thunderstorm formation, buying time for the evacuation of personnel and equipment.
