Sex identification in birds

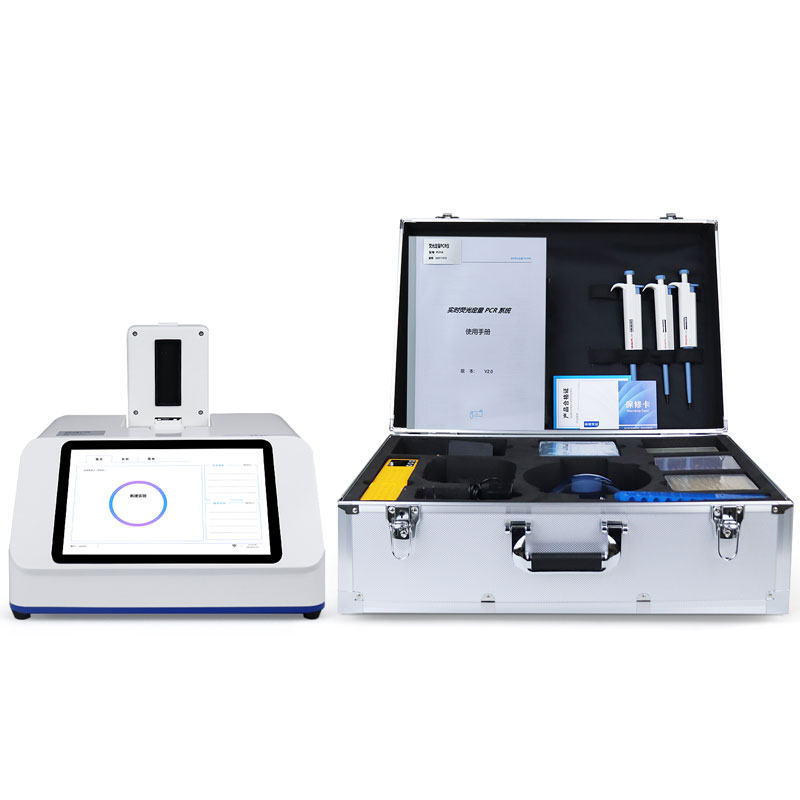

Sex identification in birds is an instrument for real-time detection of reactions.It mainly consists of a gene amplification thermal cycle component, a trace fluorescence detection optical system, a microcircuit control system, a computer and application software.It is simple to operate and can non-invasively identify the gender of pigeons with an accuracy of 99.9%.

2.Characteristics of Sex identification in birds instrument

1.Small size, light weight, easy to carry.Easily meet the needs of out-of-town experiments.

2.Built-in 10-inch high-definition capacitive screen PDA, touch screen operation, simple and fast.

3.Marlow's high-quality Peltier refrigeration chip, combined with the German high-end PT1000 temperature sensor and the temperature control mode of the electrical resistance heating compensation edge, has a maximum heating speed of 7°C and a maximum cooling speed of 5°C, which greatly shortens the experimental time.

4.3s fast lighting mode for the entire board to ensure the consistency of hole positions in experimental results.

5.Simple and intuitive software guidance makes it easy to start detection experiments.

3.Application fields of Sex identification in birds

basic scientific research

Pathogen detection

Adulteration of meat products

GMO testing

Food safety testing

Drug development and rational drug use

gene expression

water body monitoring

4.Technical parameters of Sex identification in birds

Sample capacity: 16x0.2ml, supports 8 strips

Applicable consumables: common transparent PCR consumables, 8x0.2ml tubes, 0.2ml single tube

Reaction system: 5-120ul reaction mode system

Heating/cooling module: high-performance imported semiconductor thermoelectric module

Temperature control range: 4°C-99°C

Hot cover temperature: 30℃-108℃ (default 105℃, hot cover temperature is adjustable)

Heating rate: 3.5℃/s(MAX)

Cooling rate: 2.5℃/s(MAX)

Temperature control accuracy: ±0.1°C

Temperature Uniformity: ±0.25°C

Temperature accuracy: ±0.1℃

Number of temperature control areas: multiple points (2 points)

Number of gradients: 0

Gradient temperature range: None

Number of gradient holes: None

Excitation light source: high-power LED (maintenance-free, long life)

Excitation light wavelength range: 400-700nm

Detection components: Imported high-sensitivity photoelectric sensor

Excitation and detection propagation medium: high temperature resistant professional light guide fiber

Number of detection channels: standard 2 channels (FAM/VIC)

Applicable dyes and probes: FAM, SYBR Green

HEX,JOE,VIC

Software function: multiplex qPCR data analysis function, can detect 2 detection channels at the same time

amplification curve,

Standard curve quantification,

melting curve,

Support HRM detection

Data export: Experimental results can be directly exported in the form of graphics and tables; detailed data report content includes experimental conditions, data coordinates and tables, and data analysis parameters.

Data format: XLS, PDF, DOCX

Noise: <45dB

Screen size: 10 inches (HD)

Touch screen: capacitive

External USB: supports data import and export

Hot lid: automatic pressure adjustment
