Portable Seven-Element Weather Station: Precision Monitoring on the Go

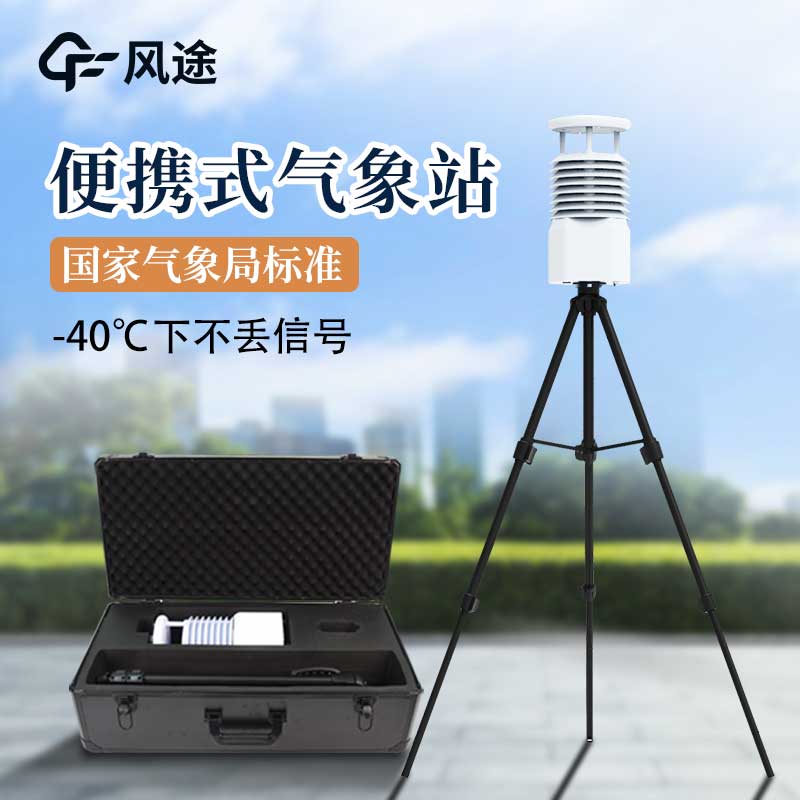

A Portable Weather Station is an all-weather integrated meteorological observation device. Designed with a portable structure, it features a highly integrated collector and sensors, allowing for immediate measurement upon unpacking without complex installation or disassembly. It is characterized by simple operation and convenient use. The core monitoring unit of the device typically weighs no more than 5KG and has a compact size, making it easy to carry. It can be placed in various field environments such as farmland, tree groves, and valleys, and can even be equipped with a vehicle-mounted tray bracket for mobile observation, effectively ensuring the timeliness and accuracy of data.

As a type of Portable Weather Station, the portable seven-element weather station boasts rich and practical functions. It generally uses a high-precision seven-element integrated sensor to real-time and accurately observe seven key meteorological elements: wind speed, wind direction, air temperature, humidity, atmospheric pressure, total radiation (or light), and optical rainfall. The sensor housing is mostly made of imported ABS material with a protection level of IP65 or above, effectively resisting erosion from harsh environments such as salt spray.

The hidden ultrasonic probe design on the top cover avoids interference caused by snow and rain accumulation and natural wind obstruction. By emitting continuous frequency-modulated ultrasonic signals and measuring relative phases to detect wind speed and direction, the measurement accuracy is greatly improved. The device supports multiple transmission methods such as wired, Bluetooth, and GPRS to meet data transmission needs in different scenarios, and it can be quickly deployed without debugging. Meanwhile, it has an intelligent operating system and interface, enabling observers to easily complete data collection, storage, and processing. Equipped with a large-capacity lithium battery with a battery life of ≥32 hours and a power display function, it provides reliable power support for long-term field monitoring.
