The atmospheric electric field monitor provides early warning by capturing lightning activity in real-time using a field-mill sensor

This high-precision lightning warning device operates on the field-mill principle. It converts electric field signals into electrical signals through the alternating shielding action of stationary and rotating vanes, enabling real-time measurement of atmospheric electric field strength within the range of -100 kV/m to +100 kV/m. It is suitable for lightning monitoring and early warning applications in sectors such as meteorological stations, the petrochemical industry, and power infrastructure.

The atmospheric electric field monitor is a professional instrument used to measure the intensity and fluctuations of the atmospheric electric field, serving as a vital tool in atmospheric science. It operates based on the physical principle of induced charge generation on a conductor within an electric field. When charge separation occurs in clouds, the electric field near the ground changes accordingly; the field strength is directly related to the magnitude and distribution of the accumulated charge within the clouds. By continuously monitoring dynamic changes in the ground-level atmospheric electric field, the device can infer trends in the electric field of high-altitude clouds, thereby providing a degree of advance warning regarding the risk of lightning strikes.

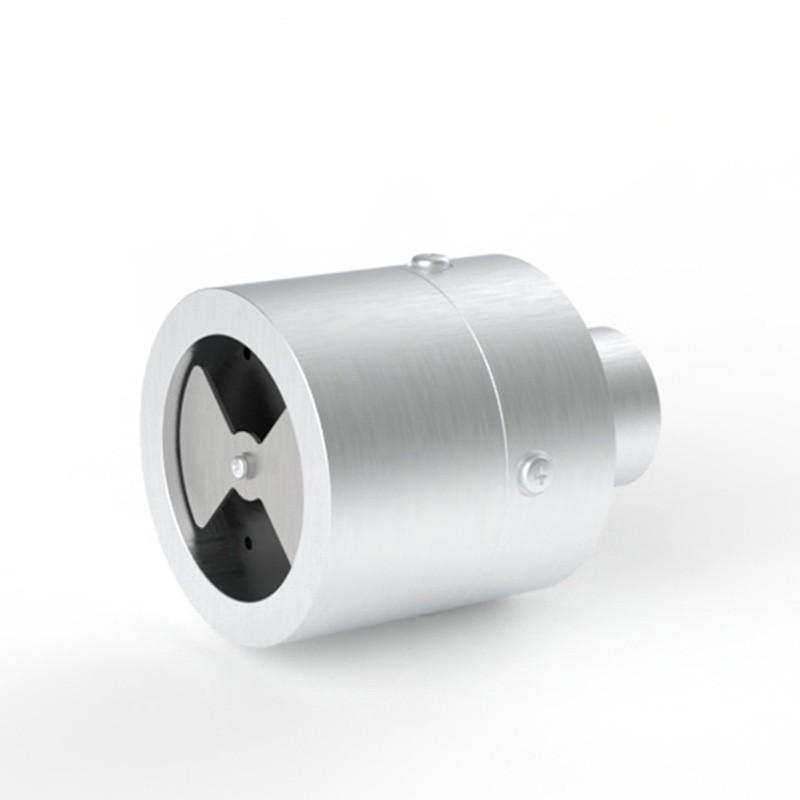

In terms of hardware, the monitor utilizes a field-mill design. Its core consists of two components: a stationary vane (sensing element) and a rotating vane (grounded shielding element driven by a motor). As the rotating vane spins, the stationary vane is alternately exposed to and shielded from the atmospheric electric field, generating an alternating electrical signal proportional to the field strength. This signal undergoes amplification and filtering before the central processor calculates the specific electric field strength value. The housing is constructed from 6061 aluminum alloy, and the sensing vane is chrome-plated to prevent rust, ensuring excellent waterproofing, dustproofing, and corrosion resistance.

The monitor measures atmospheric electric field strength in real-time across a range of -100 kV/m to +100 kV/m, achieving a measurement accuracy of ±0.001% F.S. and a response time of approximately 3 seconds. It supports the Modbus-485 communication protocol, allowing monitoring data to be transmitted to a central platform via wired connections or 4G wireless networks. The device operates on a 12V DC power supply and features low overall power consumption. Certain models are equipped with solar power units, making them suitable for long-term deployment in remote areas lacking mains power.

Regarding applications, atmospheric electric field monitors are widely deployed at meteorological stations to provide continuous monitoring of regional lightning activity, thereby supplying critical data for weather forecasting and meteorological disaster warnings. These devices serve as vital lightning protection monitoring tools for facilities vulnerable to lightning strikes, such as petrochemical plants, telecommunications base stations, power infrastructure, and high-rise buildings. When the atmospheric electric field intensity exceeds a preset threshold, the system can trigger multi-level alarms, prompting personnel to take protective measures—such as halting outdoor operations or shutting down critical equipment. In the aviation sector, the equipment provides lightning warning data to enhance flight safety; in forestry, it is used to monitor lightning activity and help prevent forest fires caused by lightning strikes.
