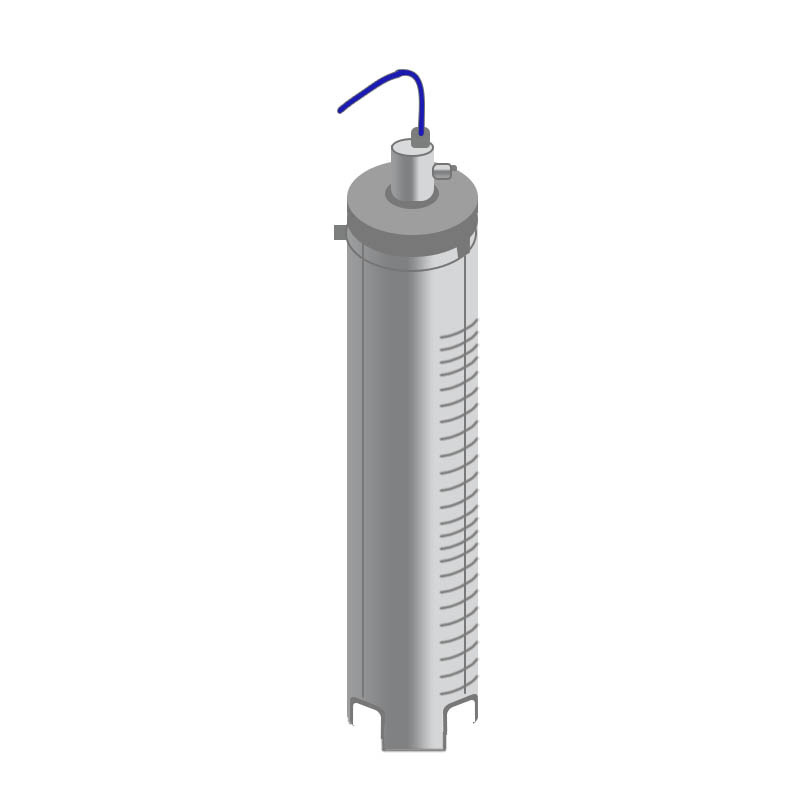

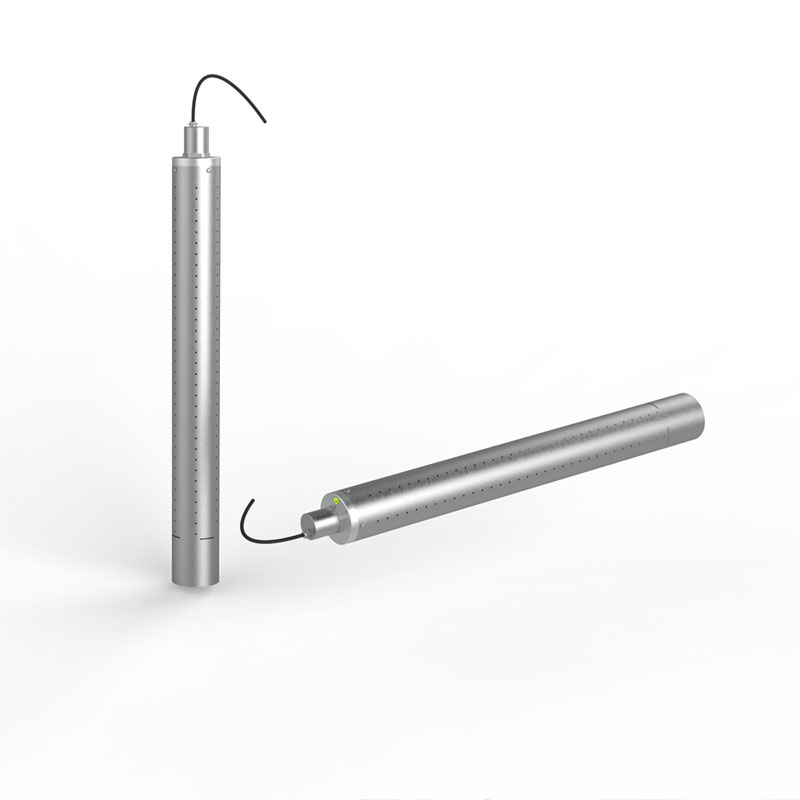

Dam seepage monitoring

Dam seepage monitoring

Model:FT-LSY1

Brand:fengtu

1、Dam seepage monitoring Product IntroductionDam seepage monitoring is a high-precision instrument for measuring flow in open channels. Combining a magnetostrictive level sensor with a standard hydraulic weir structure, it is suitable for agricultural irrigation, hydrological monitoring, urban dr
  • Product details
  • Related products
  • Related articles

1、Dam seepage monitoring Product Introduction

Dam seepage monitoring is a high-precision instrument for measuring flow in open channels. Combining a magnetostrictive level sensor with a standard hydraulic weir structure, it is suitable for agricultural irrigation, hydrological monitoring, urban drainage, and industrial wastewater treatment, enabling continuous, stable, and unattended measurement of water flow in open channels. This equipment can be widely used in various open channel environments such as canals, troughs, and irrigation ditches, and is suitable for measuring fluids such as clean water, rainwater, and general industrial wastewater. The equipment operates on a 12V DC power supply, with an operating temperature range of 0℃ to +60℃ and humidity less than 95%. It has an IP65 or higher protection rating, enabling long-term operation in harsh outdoor environments with high humidity, dust, and strong sunlight. To ensure measurement accuracy and system stability, it is recommended to install the equipment in a location free from severe vibration, strong electromagnetic interference, and easy to maintain.

2、Dam seepage monitoring Technical parameters

Measurement range 0~600mm
Sensitivity 0.01mm
Measurement accuracy ≤0.1%F.S
Working voltage DC12V (0.5W@12V)
Output signal RS485-MODBUS protocol
Protection level IP67
Case material 304 Stainless Steel
Dimensions Φ89×850mm
