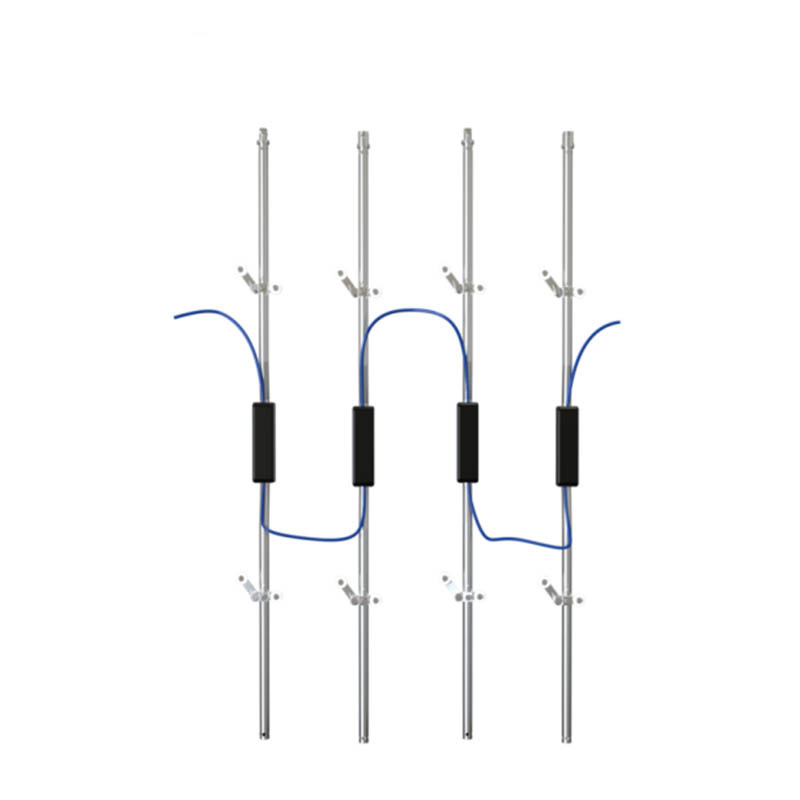

Fixed inclinometer

1.Fixed inclinometer product introduction

This type of fixed inclinometer is a fixed inclinometer with ultra-large range, ultra-low power consumption and ultra-high precision. It is mainly used for long-term online measurement of deep displacement (angle) changes in inclinometer holes. The magnetic water weir meter measurement system can intelligently identify parameters, intelligently diagnose faults, and seamlessly connect cloud platforms and mobile phones.

2. Fixed inclinometer product features

1. Accurately measure 3-axis inclination, acceleration, temperature, and voltage;

2. Ultra-low power consumption reduces the burden on the power supply system;

3. Ultra-large range, can be used for ultra-large deformation monitoring application scenarios;

4. The communication interface adopts the standard RS485 interface, which can be directly connected to DTU, serial port server or other data acquisition instruments. The integration is very convenient and up to 128 units can be connected in parallel;

5. The communication protocol adopts the standard MODBUS protocol, which is convenient for protocol docking and can freely cut the required data;

6. Built-in temperature measurement unit, automatic temperature compensation, reducing sensor temperature drift;

7. Powerful interface protection and anti-power reverse connection function;

8. Excellent lightning protection and anti-static performance (±60kV/600W);

9. Sealing level: IP68 dust and water proof level;

10. Water pressure resistance: 2Mpa (can be used for a long time at 200 meters underwater);

3. Fixed inclinometer industry application

Landslide monitoring; foundation pit monitoring; highway slope; tailings monitoring;

4. Fixed inclinometer technical parameters
