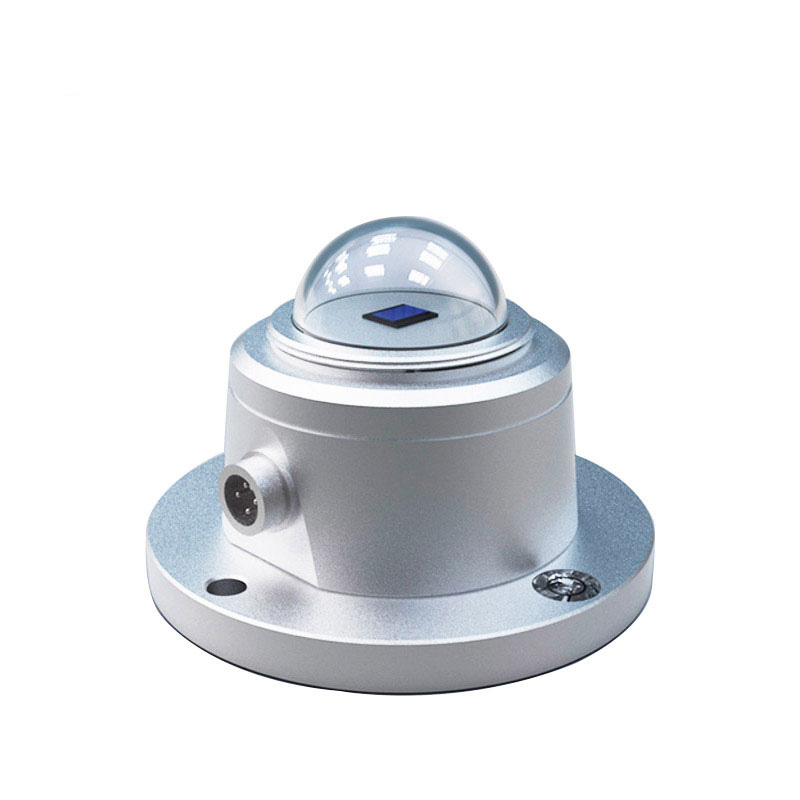

Solar Radiation Sensor
Model：FT-FS1
Brand：fengtu
1.Solar Radiation Sensor Technical SpecificationsPower supply: DC12VPower consumption: 0.036WWorking environment: -20~65℃Communication interface: RS485Working current: 3mA@DC12VMinimum data interval: 0.5S2. Solar Radiation Sensor ParametersMeasurement element: irradianceMeasuring range: 0-2000W/m²
Get a Free Quote- Product details
- Related products
- Related articles
1.Solar Radiation Sensor Technical Specifications
Power supply: DC12V
Power consumption: 0.036W
Working environment: -20~65℃
Communication interface: RS485
Working current: 3mA@DC12V
Minimum data interval: 0.5S
2. Solar Radiation Sensor Parameters
Measurement element: irradiance
Measuring range: 0-2000W/m²
Resolution: 1W/m²
Response time: ≤10S
Accuracy: <±3%
Annual stability: ≤±3%
Zero drift: ≤6 W/m²

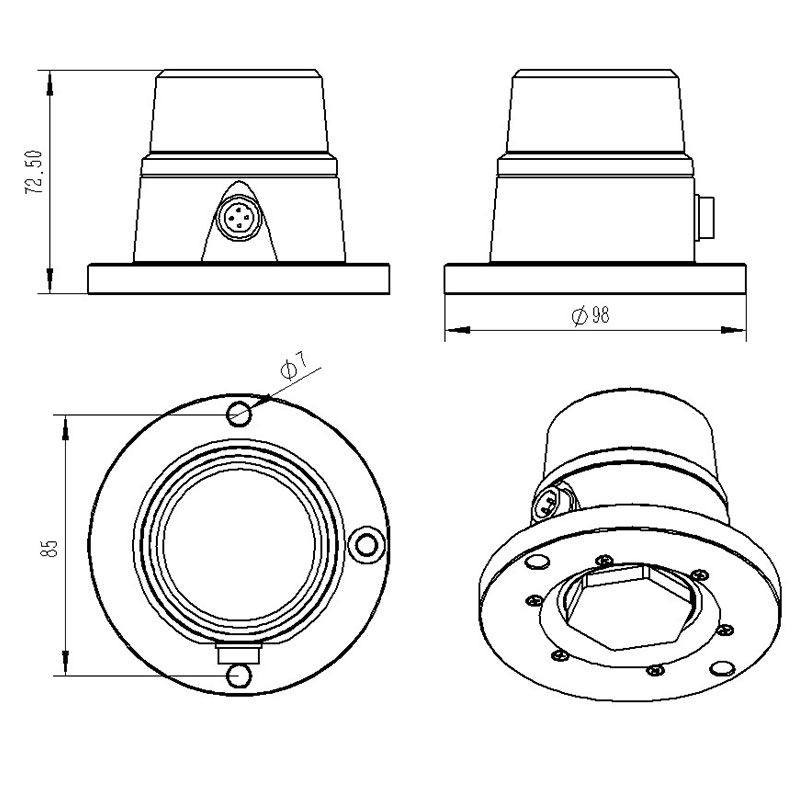

3. Solar Radiation Sensor Product Dimensions
Address:https://www.fengtusensor.com/Radiation-sensor/Solar-Radiation-Sensor.html
Previous Article ：no more
Next Article：Pyranometer sensor
-
