Snow Depth Ultrasonic Sensors

1.Snow Depth Ultrasonic Sensors Product Introduction

Snow Depth Ultrasonic Sensors is a sensor that uses ultrasonic technology to detect the distance of the snow surface. The sensor adopts an integrated capacitive electrostatic transducer probe design with high sensitivity, strong anti-interference ability and high accuracy.

2. Snow Depth Ultrasonic Sensors Technical Specifications

Power supply: DC12V

Working environment: -40-60℃, humidity ≤100% without condensation

Communication interface: RS485

Working current: 18mA DC12V

Minimum data interval: 0.2S

Shell material: aluminum alloy

Measuring range: 0-2000mm

Measurement resolution: 1mm

Accuracy: 1mm±0.2%

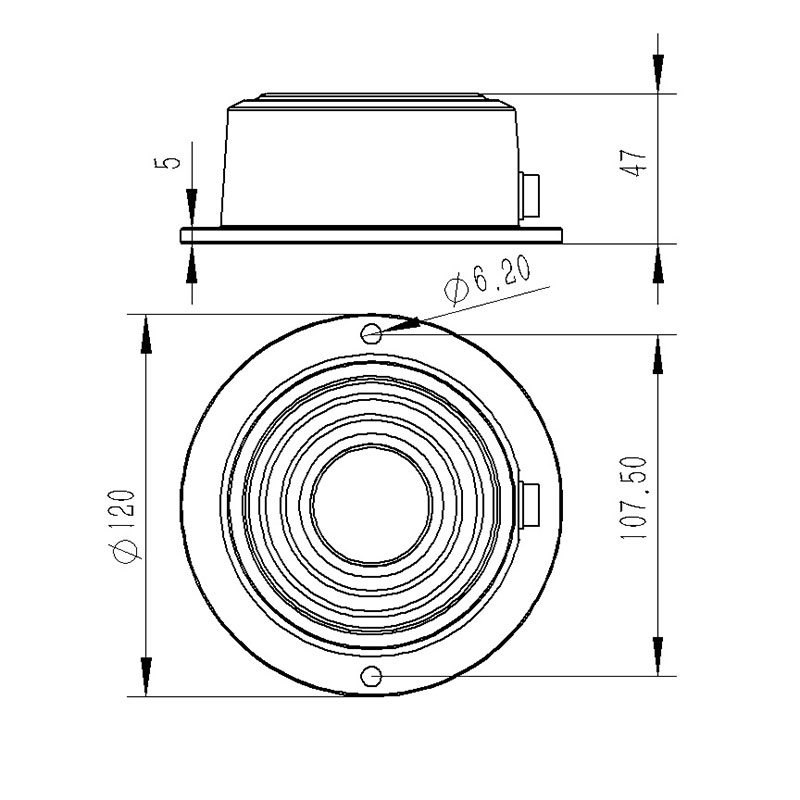

3. Snow Depth Ultrasonic Sensors Product Dimensions

4. Snow Depth Ultrasonic Sensors Product Usage

The equipment installation site should be selected in an open area.

The equipment installation cross arm should be at least 1M

There should be no obstructions above the device.

The distance between the device and the ground plane should be within 20cm-200cm. To ensure measurement accuracy, the recommended distance is 100cm.

The equipment mounting bracket should be kept horizontal. The reflective ground of the sensor should be level. The reflection point should be within a radius of 1 meter to avoid interference from weeds.
