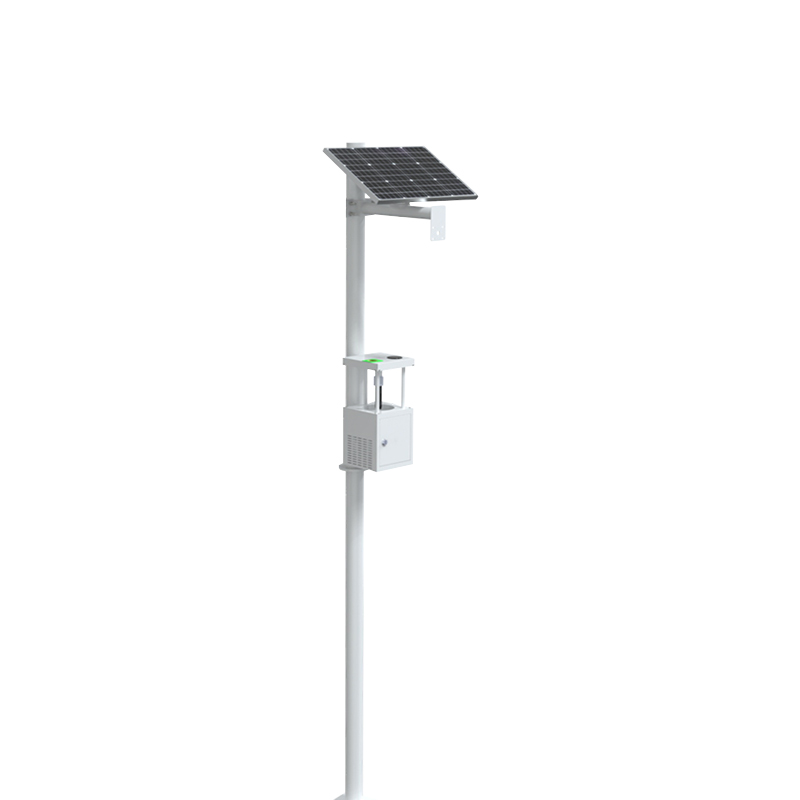

Intelligent Insecticidal Lamp
Model：FT-FD2
Brand：fengtu
1.Intelligent Insecticidal Lamp Product OverviewIntelligent Insecticidal Lamp is a physical insecticide device that uses light waves to lure adult pests to the lamp, and then the fan rotates to generate negative pressure airflow to suck the insects into the collector, so that they can be air-dried a
Get a Free Quote- Product details
- Related products
- Related articles
1.Intelligent Insecticidal Lamp Product Overview
Intelligent Insecticidal Lamp is a physical insecticide device that uses light waves to lure adult pests to the lamp, and then the fan rotates to generate negative pressure airflow to suck the insects into the collector, so that they can be air-dried and dehydrated to achieve the purpose of insecticide. The wind-suction insecticidal lamp developed by our company has improved the light source and insecticidal method, breaking through the ability of conventional insecticidal lamps to kill small pests, and greatly improving the efficiency of killing pests. The device uses solar panels as power supply, stores power during the day, and provides power for the insecticidal lamp at night to lure pests to the light source. The product consists of an insect-attracting light source, an insecticidal component, an insect-collecting component, a supporting component, etc. It has the characteristics of simple structure, easy installation, strong operability, a variety of insecticidal species, a wide range of insecticidal, safety, environmental protection, and non-toxicity. This product is widely used in agriculture, forestry, warehousing, fish ponds, etc., and can effectively prevent various lepidopteran pests.
2. Intelligent Insecticidal Lamp Features
1. The device is in standby mode during the day, and uses sunlight intensity and rainfall to control whether the device is working. If it detects rainfall or it is in daytime, the device is in standby mode; if it detects no rain and it is dark, the device works normally.
2. It uses a multi-spectrum insect-attracting light source with a wavelength of 320nm-680nm, which can trap multiple types of pests at the same time.
3. The use of high-power fans can greatly increase the number and efficiency of flukes.
4. Use new polycrystalline solar panels with high energy conversion rate and environmental protection.
3. Intelligent Insecticidal Lamp Technical Parameters
| Light source parameters | wavelength | 320nm-680nm |
| power | 15W | |
| Solar panel parameters | power | 30W |
| size | 505*430mm | |
| Fan parameters | powered by | 12V |
| power | 4W | |
| Actual power of the whole machine | ≤15W | |
| Pole parameters | diameter | 76mm |
| length | 3m | |
| Data upload method | 4G | |
| Platform display content | Rainfall status, light status, insect attracting lamp status, fan status, battery parameters | |
| Service life | ≥ 3 years | |
| Solar power system life | Continuous rainy days for 2 to 3 days | |

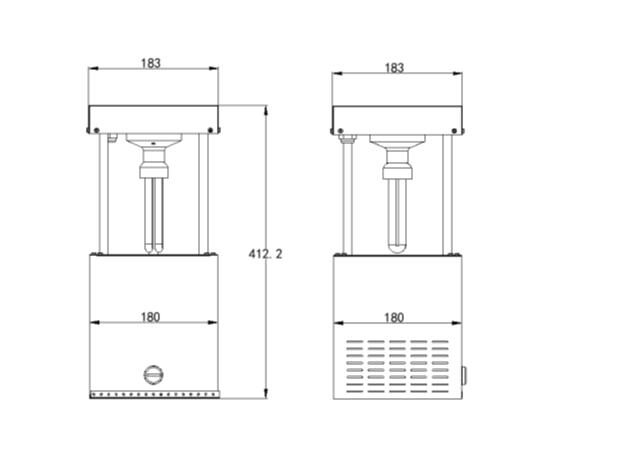

4. Intelligent Insecticidal Lamp Product Dimensions

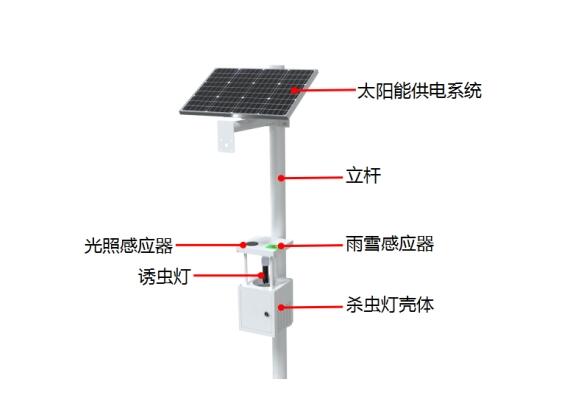

5. Intelligent Insecticidal Lamp Product Structure
