Lightning Monitoring and Early Warning System Leverages MEMS Technology to Reduce False Alarms

This lightning monitoring and early warning system is a fully digital platform designed for electric field detection and lightning alerts. It operates on the principle of charge induction, utilizing MEMS (Micro-Electro-Mechanical Systems) sensor structures. With no moving mechanical parts, the system employs an optimized electric field differential algorithm to minimize false triggers caused by environmental factors such as rain, snow, high winds, or airborne dust. It supports cloud-based data access and a three-level audible and visual alarm system, making it well-suited for localized, short-term lightning warnings in environments such as mines, oil depots, and power grids.

The system is an integrated solution combining lightning detection, early warning, data transmission, real-time monitoring, and intelligent linkage. Its core detection unit is built upon charge induction principles and MEMS technology; it contains no wear-prone moving parts (such as motors), resulting in a compact footprint, low power consumption, high operational stability, and versatility for various on-site installation requirements. Moving beyond traditional methods that rely solely on fixed threshold values, the system utilizes an advanced algorithm—combining electric field differentials with threshold optimization—to distinguish between actual lightning threats and environmental interference (e.g., rain, wind, snow, or dust). This significantly reduces false alarms triggered by non-thunderstorm events and enhances the reliability of lightning warnings.

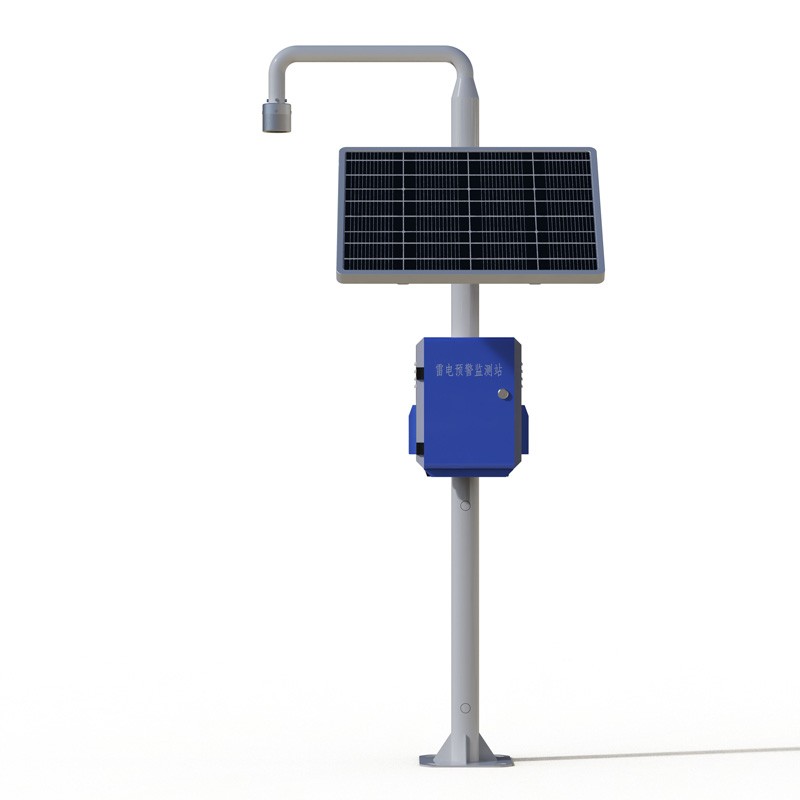

The system comprises a lightning warning probe, a data processing unit, a solar power supply system, a three-level audible and visual alarm, and a cloud-based data access and display module. It features an electric field measurement range of -100 kV/m to +100 kV/m, a resolution of 0.1 V/m, a measurement accuracy of ±0.001% of full scale, and an effective detection radius of up to 15 kilometers. The sensor weighs 710 grams, while the entire system has a total weight of 35 kilograms. It is easy to install and integrate, allowing for flexible deployment based on the specific protection needs of a given area. The lightning monitoring and early warning system is designed for environments that require stringent lightning risk management. It serves a wide range of sectors—including aerospace and national defense, meteorological monitoring, the oil and petrochemical industry, power grids, tourist attractions, mining, fuel depots, and military facilities—by providing continuous atmospheric electric field detection and localized, short-term lightning alerts. The system supports solar power, enabling stable, long-term operation in remote areas where a conventional power supply is unavailable. Early warnings are delivered on-site via audible and visual alarms, while monitoring data is simultaneously uploaded to a cloud-based platform. This allows management personnel to monitor electric field fluctuations and alert status in real time from a remote location, facilitating timely safety measures—such as halting operations or seeking shelter—thereby reducing the risks and potential property damage associated with lightning strikes.
