Agricultural monitoring equipment

1. Agricultural monitoring equipment system background

With the development of smart agriculture, technologies such as the Internet, big data, and artificial intelligence have gradually been applied to all aspects of agricultural production, greatly improving the allocation and utilization efficiency of various production factor resources such as labor and capital.

With the help of the Internet of Things, smart agriculture has built an agricultural production system that integrates environmental monitoring and precise adjustment.It can monitor and supervise different agricultural production environments and objects, detect physical parameters of the environment through sensing equipment, and monitor soil, insect status, Real-time and dynamic monitoring of production environment conditions such as meteorology, seedlings, spores, etc., to ensure compliance with agricultural production environment standards.The application of these new technologies will greatly improve the quality of agricultural products and make them meet market demand, achieve effective docking of supply and demand, and promote Agricultural production will be refined, efficient and modernized.At the same time, the system is equipped with an air-suction insecticidal lamp, which can effectively kill insects and is green and pollution-free.

2.Agricultural monitoring equipment system composition

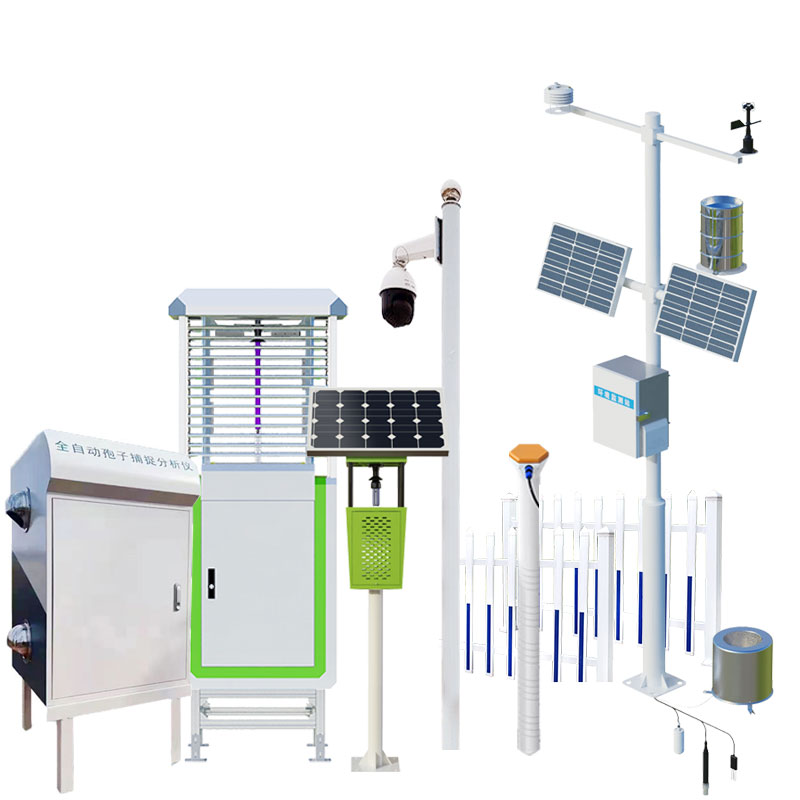

The system consists of a tubular soil moisture monitor, an insect alarm lamp, a weather station, video surveillance, a fence, an air-suction insecticidal lamp, a spore capture device, and a cloud platform.

The system can monitor the soil temperature, soil moisture, disease and insect status (types and numbers of pests, etc.), climate conditions (environmental parameters such as air temperature, humidity, rainfall, illumination, carbon dioxide, wind speed and direction), and crop growth in agricultural fields., the number of spores is systematically monitored and management, uploading data to the reporting platform through GPRS/4G or network port, managers can remotely view the data and trends of various environmental parameters in real time, saving manpower, and make corresponding adjustments based on data feedback to ensure good growth of crops and help agricultural production.

3.Introduction to Agricultural monitoring equipment platform

1.The agricultural four-situation forecasting and reporting platform is an online monitoring platform integrating insect status, meteorology, moisture status, seedling status, and spore monitoring.Pest monitoring has the functions of automatic identification of Al pests, remote real-time viewing of insect status, online analysis of pest status, automatic identification of pest species, regional pest status statistics, pest status change trend analysis, equipment monitoring and other functions.Meteorological monitoring has the function of remotely viewing the weather in real time and analyzing historical weather data online.Moisture monitoring has the function of remotely acquiring soil moisture (such as soil temperature and humidity, moisture, PH) data and online analyzing soil moisture historical data.Seedling condition monitoring allows you to view crop growth pictures in real time.The automatic spore capture device uses light, electricity, and numerical control technology to automatically take photos of captured bacterial spores around the clock with automatic microscopic imaging.The intelligent spore capture equipment includes high-magnification optical microscopy imaging system, precision limit technology, automatic intelligent focusing and fusion technology, Internet of Things transmission control technology and other technical means, and uploads pictures of spores in the air to the designated agricultural cloud platform in real time.

2.The monitoring homepage displays menu information such as device list, large-screen visualization, map display, etc.Displays soil moisture, insect status, weather monitoring icons and equipment operating status.

3.Pest situation monitoring includes five parts: real-time insect situation, insect situation analysis, pest types, real-time status, and operation records.

4.Insect situation analysis: Pictures within the selected time range can be queried.

5.Pest statistics include regional statistics and trend analysis.

Regional analysis: Select a region, select a time and click Query to query the number of pests in the pest situation equipment in the selected time period.

Trend analysis: Select an area, select a time and click Query to query the curve changes in the number of each pest species in the area.

6.Meteorological monitoring includes real-time data and historical data.

7.Moisture monitoring includes real-time data and historical data.

8.System management includes four parts: equipment management, user management, area management, and system logs.
