Grass temperature sensor

1.Grass temperature sensor product introduction

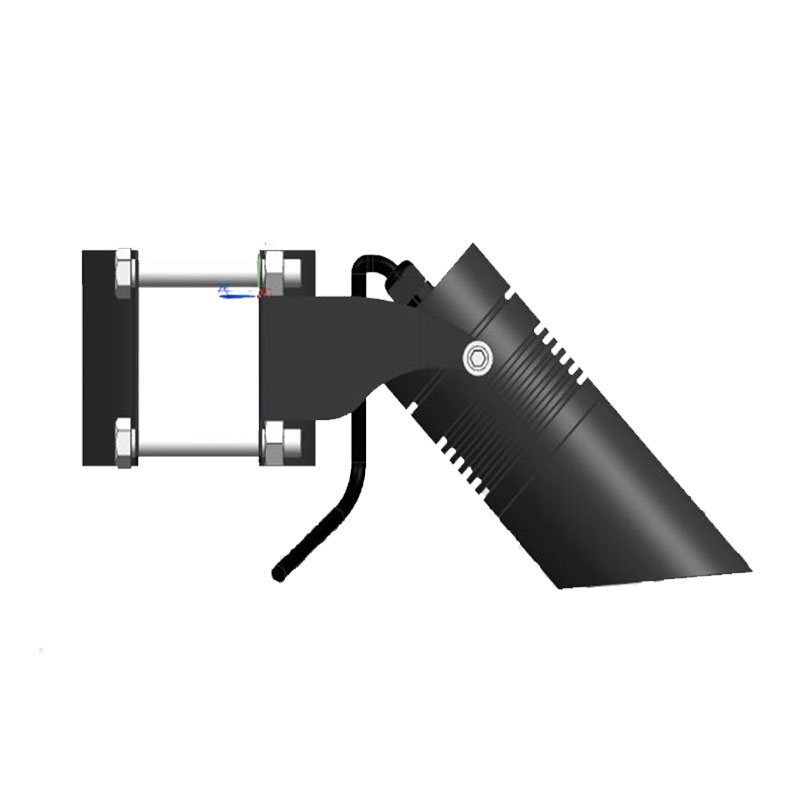

HW1 is an integrated Grass temperature sensor.The optical system and electronic circuits are integrated into the metal housing.The protective cover is easy to install and 90° adjustable bracket; to meet the installation and uninterrupted measurement under various outdoor conditions.

The interior of HW1 is composed of a thermopile and a thermistor.All objects are constantly emitting infrared radiation energy to the surrounding space.By measuring the infrared energy radiated by themselves, their surface temperature can be accurately measured.This is the principle of non-contact infrared temperature measurement.The infrared thermometer can completely avoid contacting the target, and calculate the surface temperature of the object by measuring the infrared radiation emitted by the target, which is its biggest advantage.

2.Grass temperature sensor application scope

Long-distance measurement of road surface temperature

Bridge Deck Temperature Monitoring

Plant canopy temperature monitoring

Grass temperature monitoring, soil surface or snow-covered surface temperature

3.Grass temperature sensor technical parameters

Measurement range: -38℃-70℃

Measurement accuracy: ±1% or ±1℃

Perspective: D:S=8:1

Display resolution: 0.1℃

Response time: 1 second

Working band: 8-14um

Output method: RS485

Communication protocol: ModBus

Working conditions: -40-80℃; 0-100%RH

Supply voltage: DC12V

Power consumption: 5mA@12VDC (normal working mode)
