Soil Temperature Moisture Salt Sensor

1.Technical indicators of Soil Temperature Moisture Salt Sensor

1.Power supply: DC12V

2.Power consumption: less than 0.1W

3.Working temperature: -30~70℃

4.Communication interface: RS485

5.Working current: 8mA DC12V

6.Minimum data interval: 60S

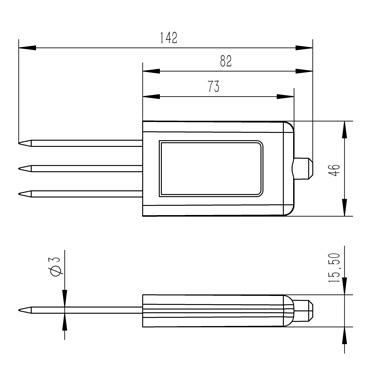

2.Soil Temperature Moisture Salt Sensor product size chart

3.Precautions for using Soil Temperature Moisture Salt Sensor

1.Sensor installation should be carried out strictly in accordance with the installation and operating instructions.

2.When multiple sensors work at the same time, they must be separated by a distance of more than 5 meters.

3.The sensor measurement principle is limited.There should be no interference from electromagnetic cables and strong magnetic radiation within a 5-meter radius of the sensor measurement location.

Avoid huge errors and damage to sensor measurements.

4.The installation environment of the sensor should comply with the measurement range of the sensor to avoid irregularities such as over-range.

5.The sensor should be installed away from strong acid, alkali, heavy oil and heavy metal environments.

6.The sensor is a soil measurement sensor.It is prohibited to use this sensor for other purposes.

7.The sensor installation environment must not have strong vibration.

8.The sensor cannot be subject to excessive external force.

9.Disassembly is prohibited, and no service will be provided if you disassemble it without permission.

10.The sensor probe is relatively sharp, so you should wear protective gear according to regulations when using it.

11.The use and maintenance of equipment should be strictly carried out in accordance with the above precautions.If there is any violation of regulations, our company will not be responsible for it.

4.Soil Temperature Moisture Salt Sensor sensor parameters
