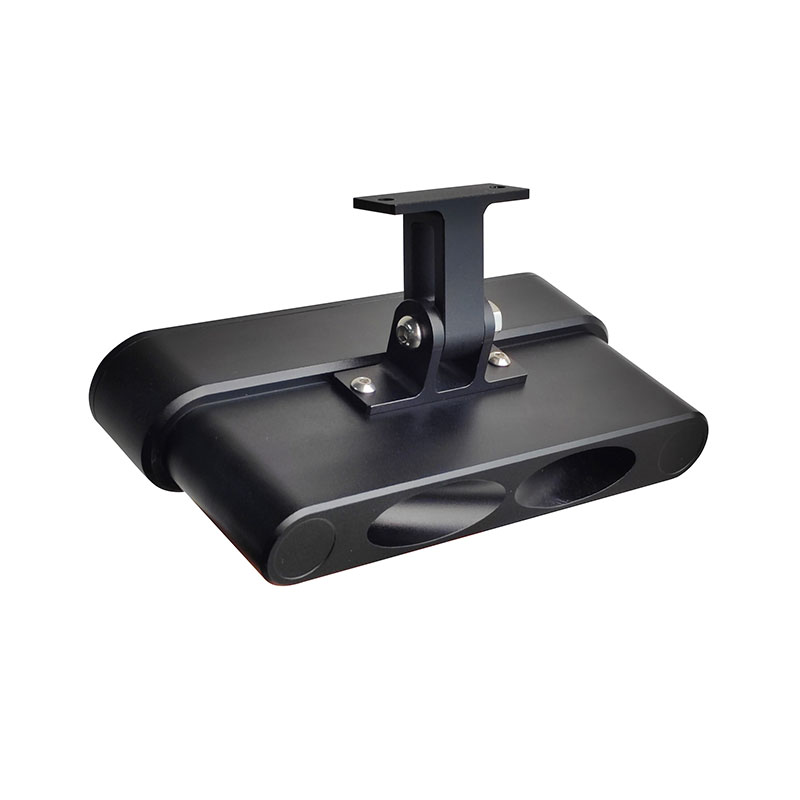

Forward Scatter Visibility Sensor

1.Forward Scatter Visibility Sensor product features

1.The Forward Scatter Visibility Sensor weighs only 680/880 grams and is designed for monitoring and collection of visibility and other meteorological data in the air flight of unmanned aircraft or small unmanned patrol vehicles;

2.It has a compact appearance and uses the principle of forward scattering to detect atmospheric visibility, which can work normally in an altitude of 4,000 meters and minus 20 degrees;

3.The appearance is flat and the wind resistance is low, and it is hoisted on the belly of the machine.Users can choose ABS and aluminum alloy housing materials as needed, or they can also choose temperature, humidity and air pressure sensors.The power consumption of the instrument is only 0.9 watts, which is very suitable for small drone platforms, and is equipped with aircraft for patrols of low-altitude environmental meteorological elements.

2.Forward Scatter Visibility Sensor size and weight

Visibility dimensions: 174mm*85mm*35mm

Weight (ABS material): 680g

Weight (aluminum alloy material): 880g

3.Main technical parameters of Forward Scatter Visibility Sensor

Detection range: 10-6000 meters (maximum 10000 meters)

Measurement accuracy: ±10%

Light source: IR LED

Data update: 1 second

Digital output: RS485/232, TTL

Optional elements: temperature and humidity, air pressure

Working temperature: -20-50°C

Working humidity: 0-95%

Supply voltage: DC 12V

Power consumption: 0.9W
