Buoy Water Monitoring

1.Introduction to Buoy Water Monitoring

1.Buoy Water MonitoringSFA is an unattended data collection system that integrates data collection, storage, transmission and management. It is an automatic hydrological monitoring and reporting system for industrial and agricultural production, tourism, urban environmental monitoring, geological disasters, flood control, water supply scheduling, power station reservoir water management, etc. The powerful host computer software can remotely observe real-time water and rainfall information, and has database, report, download and other functions. Users can also use the well-functioning meteorological software to further process and analyze the recorded data.

2. The water quality monitoring system consists of six parts: water quality sensor, data acquisition instrument, communication system, power supply system, overall support, and water quality monitoring platform. It can simultaneously monitor water temperature, pH, dissolved oxygen, conductivity, ammonia nitrogen, turbidity, COD, and other water quality factors. The data acquisition instrument has data acquisition, real-time clock, data timing storage, parameter setting, and standard 2G/4G (GPRS) communication functions.

2. Buoy Water Monitoring Product Features

1. Easy to deploy: various types of probes are highly integrated and easy to install; free cloud platform services are provided, and the system can be quickly put online;

2. Easy maintenance: After the equipment is installed, it can work automatically without manual supervision. The normal operation of the equipment can also be ensured by remote monitoring;

3. Easy to expand: sensor probes all use a unified communication protocol, which can quickly connect to the original equipment and quickly expand monitoring parameters;

4. Low power consumption: The device can run for a long time in a low power consumption state, increasing the convenience of device use;

5. Real-time: The data monitored by the equipment is transmitted to the cloud platform in real time to improve the timeliness of environmental data feedback.

3. Buoy Water Monitoring Technical Parameters

1. Subject parameters

2. Main parameters of optional sensors

We can customize appropriate testing solutions based on the actual situation of the customer and the technical indicators to be achieved.

Note: The sensor cannot be installed upside down or horizontally, but must be installed at an angle of at least 15 degrees.

The working environment of the above water quality sensors is 0-50℃, <0.3Mpa.

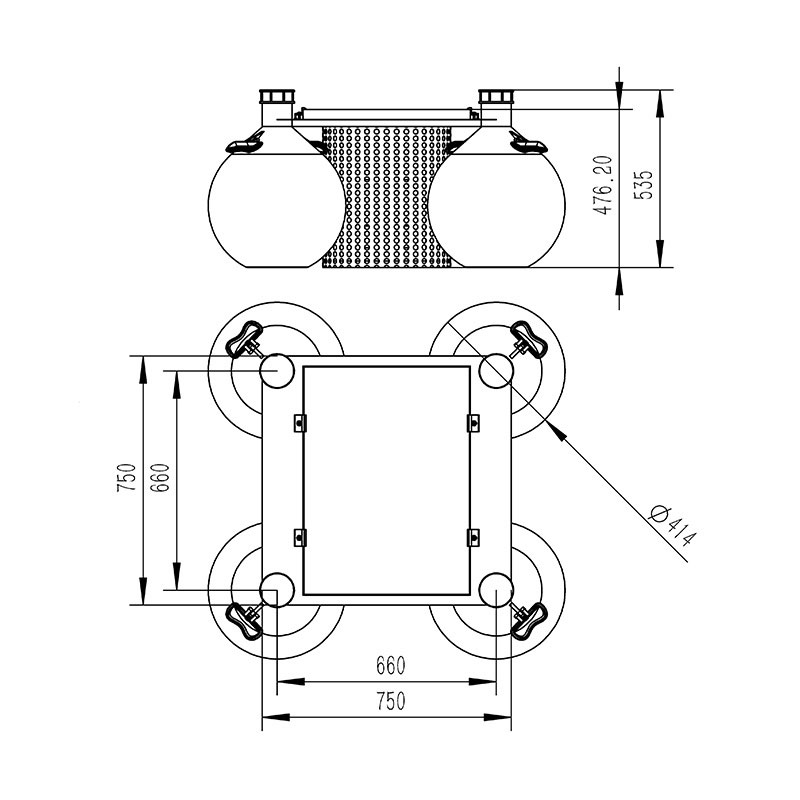

4. Buoy Water Monitoring Product Dimensions

5. Buoy Water Monitoring Equipment Installation Requirements

1. Stay away from high-power radio transmitters

2. Stay away from high-voltage transmission lines and microwave radio transmission channels

3. Try to be close to the data transmission network

4. Stay away from strong electromagnetic interference
