IoT Water Quality Monitoring Station

1. Introduction to IoT Water Quality Monitoring Station functions

1. IoT Water Quality Monitoring StationSFB adopts an enhanced integrated cone structure to increase equipment stability and durability and is more in line with floating body engineering.

It can measure the hydrological, water quality and meteorological parameters in lakes or river basins in real time. The system integrates data collection and transmission, and has the function of SMS alarm for exceeding the standard and automatic light sensing. It has the characteristics of multiple measurement parameters, high measurement accuracy, large storage capacity, convenient networking and stable operation. The buoy adopts an unattended intelligent control system to complete the data collection and data transmission of multiple sensors; the solar panels and large-capacity batteries form a solar power supply system to ensure the power required for the system to work in the field for a long time; the buoy body is made of ultra-high molecular polyethylene material, which has good anti-corrosion ability, prevents biological attachment, does not fade, has strong anti-collision ability, anti-lightning, non-magnetic and other characteristics, and is suitable for complex hydrological and hydrodynamic conditions such as reservoirs.

2. The water quality monitoring system consists of six parts: water quality sensor, data acquisition instrument, communication system, power supply system, overall support, and water quality monitoring platform. It can simultaneously monitor water temperature, pH, dissolved oxygen, conductivity, ammonia nitrogen, turbidity, COD, and other water quality factors. The data acquisition instrument has data acquisition, real-time clock, data timing storage, parameter setting, and standard 2G/4G (GPRS) communication functions.

2. IoT Water Quality Monitoring Station Product Features

1. Easy to deploy: various types of probes are highly integrated and easy to install; free cloud platform services are provided, and the system can be quickly put online;

2. Easy maintenance: After the equipment is installed, it can work automatically without manual supervision. The normal operation of the equipment can also be ensured by remote monitoring;

3. Easy to expand: sensor probes all use a unified communication protocol, which can quickly connect to the original equipment and quickly expand monitoring parameters;

4. Low power consumption: The device can run for a long time in a low power consumption state, increasing the convenience of device use;

5. Real-time: The data monitored by the equipment is transmitted to the cloud platform in real time to improve the timeliness of environmental data feedback.

3. IoT Water Quality Monitoring Station Technical Parameters

1. Subject parameters

2. Main parameters of optional sensors

We can customize appropriate testing solutions based on the actual situation of the customer and the technical indicators to be achieved.

Note: The sensor cannot be installed upside down or horizontally, but must be installed at an angle of at least 15 degrees.

The working environment of the above water quality sensors is 0-50℃, <0.3Mpa.

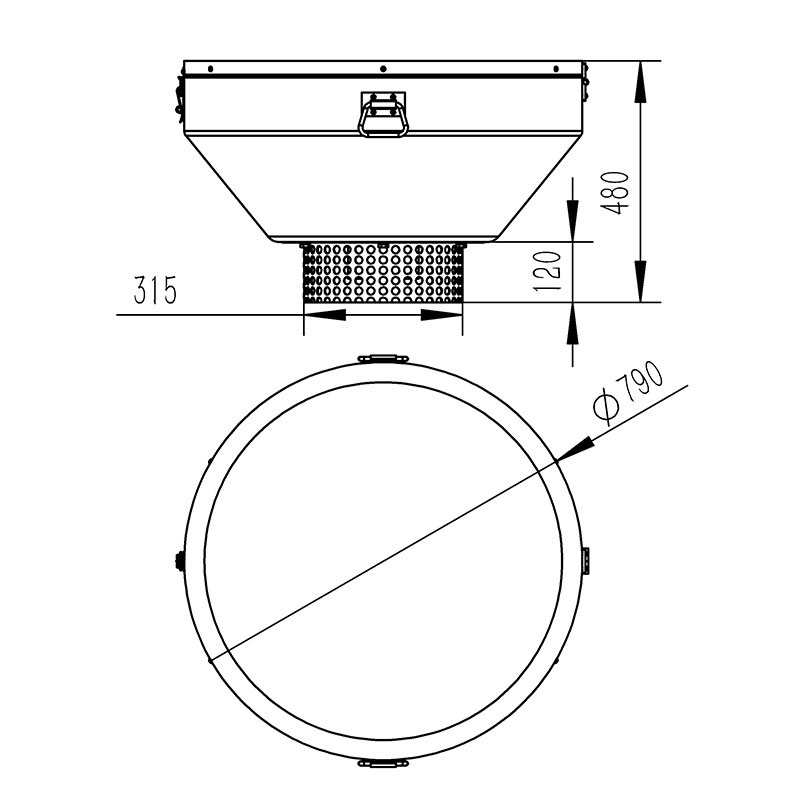

4. IoT Water Quality Monitoring Station Product Dimensions

5. IoT Water Quality Monitoring Station Equipment Installation Requirements

1. Stay away from high-power radio transmitters

2. Stay away from high-voltage transmission lines and microwave radio transmission channels

3. Try to be close to the data transmission network

4. Stay away from strong electromagnetic interference
