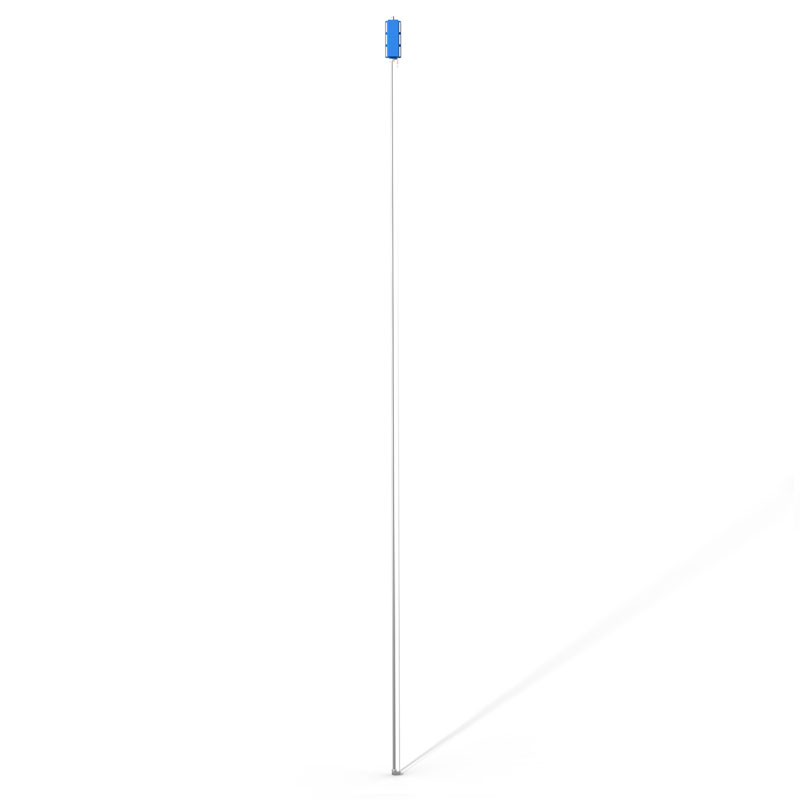

Wave height meter

Model：FT-LG200

Brand：fengtu

1、Wave height meter Product IntroductionWave height meter is a high-performance hydrological monitoring device integrating a low-power microprocessor, a 24-bit high-precision AD converter, and a capacitive wave height sensor.Its integrated structure enables convenient installation and excellent sta

Get a Free Quote

Product details
Related products
Related articles

1、Wave height meter Product Introduction

Wave height meter is a high-performance hydrological monitoring device integrating a low-power microprocessor, a 24-bit high-precision AD converter, and a capacitive wave height sensor.

Its integrated structure enables convenient installation and excellent stability. Simultaneously, the device employs RS485 long-distance communication technology, ensuring anti-interference capability and reliable data transmission over long distances.

This instrument boasts stable performance and is specifically designed for the accurate measurement of wave parameters and water level in free fluids. It not only features extremely low power consumption but also excellent linearity, high precision, fast response, no mechanical contact, and high reliability.

It is an ideal choice for long-term reliable monitoring in marine, port, reservoir, and lake environments.

2、Wave height meter Technical Specifications

Measuring Range: 0-2000mm

Resolution: 0.1mm

Measuring Accuracy: ≤0.1%F.S

Sampling Frequency: >100Hz

Operating Voltage: DC12V

Rated Power Consumption: <0.5W

Output Signal: RS485-MODBUS Protocol

Operating Temperature: 0℃~+60℃

Storage Temperature: -40℃~+70℃

Protection Rating: IP67
