The Four-Element Miniature Agricultural Weather Instrument Enables More Precise Monitoring of Greenhouse Growing Environments

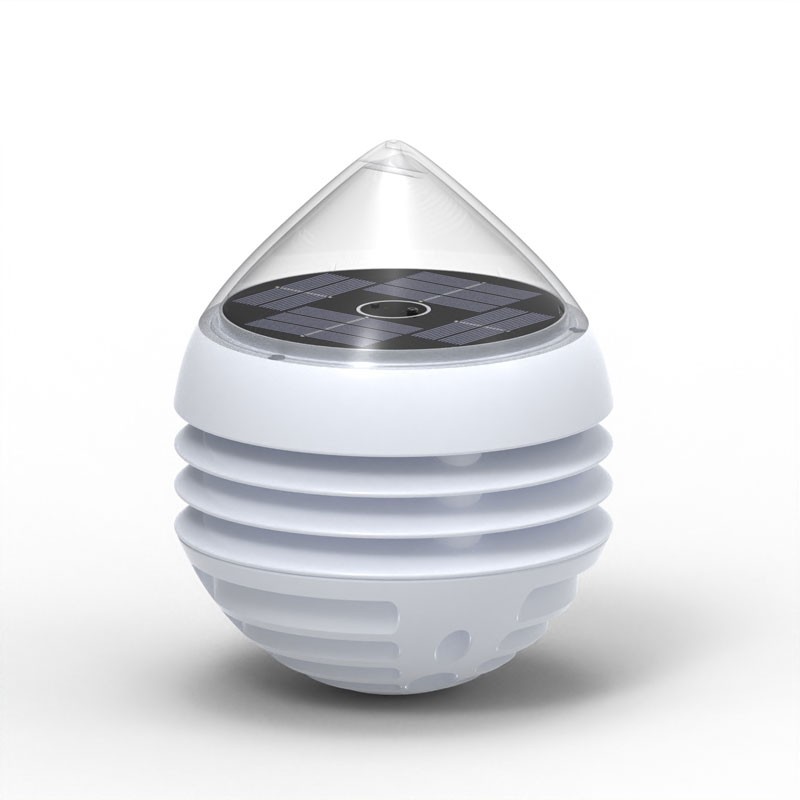

The Four-Element Miniature Agricultural Weather Instrument uses high-precision sensors to monitor temperature, humidity, air pressure, and light intensity in real time. Data is wirelessly transmitted to a cloud platform via the Internet of Things (IoT), allowing users to view it anytime. It features a built-in lithium battery and solar charging, and a waterproof casing suitable for various agricultural environments, requiring no installation before use.

The Four-Element Miniature Agricultural Weather Instrument is a compact device specifically designed for agricultural environmental monitoring, integrating four core monitoring parameters: air temperature, air humidity, atmospheric pressure, and light intensity. The device uses a high-precision sensor module. Temperature measurement ranges from -40 to 80 degrees Celsius with an accuracy of ±0.3 degrees Celsius; humidity measurement ranges from 0 to 100%RH, with an accuracy of ±3%RH within the 20% to 80% range; air pressure measurement ranges from 30 to 110 kPa with an accuracy of ±0.25%; and light intensity measurement ranges from 0 to 157,000 Lux with an accuracy of ±5%FS. These parameters cover the key environmental indicators required for crop growth, providing growers with comprehensive data support.

In terms of data transmission, the Four-Element Micro Agricultural Weather Instrument wirelessly transmits monitoring data to a cloud platform via low-power IoT technology. Users can view real-time data and historical trend curves anytime via mobile phone or computer client. The device uploads data every 5 minutes by default, has a built-in 6000mAh lithium battery, and can operate continuously for 15 days without sunlight when charged by a 1W solar panel. An intelligent sleep algorithm further reduces power consumption, meeting the needs of long-term unattended monitoring.

The Four-Element Micro Agricultural Weather Instrument features a waterproof casing design, adapting to complex agricultural environments such as rain, snow, high temperatures, and high humidity. Installation is very simple, requiring no professional construction; simply press the switch to start working. The device supports Cat1 IoT transmission and comes with three years of free data. Users can log in without a password by scanning a QR code or connect to an API to integrate data into their own management system.

The Four-Element Micro Agricultural Weather Instrument is suitable for various scenarios including greenhouse agriculture, facility agriculture, field planting, smart agricultural parks, and seed breeding bases. By monitoring real-time environmental data related to temperature, light, water, and fertilizer, growers can scientifically regulate the crop growth environment, reduce disaster risks, and improve agricultural production efficiency and agricultural product quality. The equipment supports high-density deployment of multiple monitoring points and can be flexibly installed on field ridges, greenhouse pillars, or fruit tree supports without interfering with farmland cultivation. For modern agriculture that requires precise management, this equipment provides a reliable means of data collection.
