Wireless IOT Inclinometer

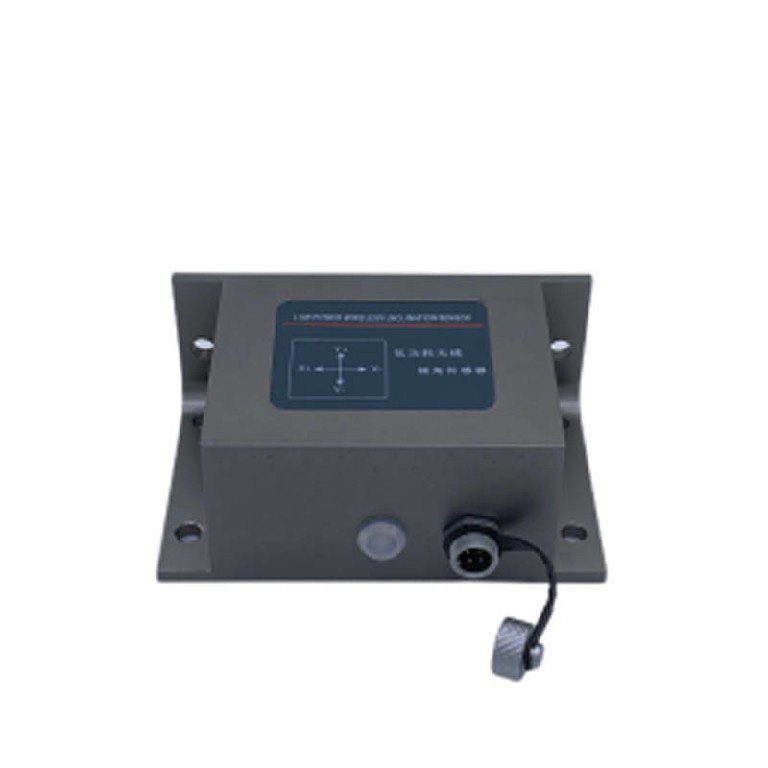

1.Wireless IOT Inclinometer Product Introduction

Low-power wireless inclination sensor and wireless inclinometer are high-performance, highly integrated, intelligent, low-power products. They are tilt angle measurement devices based on NB-iot narrowband IoT and 4G/GSM transmission. They are unique, innovative, and highly integrated. The product uses the latest all-network IoT wireless chip and the IoT cloud platform to realize remote data collection, monitoring, analysis, inspection, alarm, classification, geographic location, data report curve download, and mobile devices such as mobile phones. APP software can realize monitoring and alarm functions anytime and anywhere. Using the standard MODBUS/TCP standard communication protocol, this product is based on a microprocessor and can reliably realize the collection and processing of signals such as inclination, horizontal displacement, and power, and can realize functions such as timed data reporting and triggered reporting.

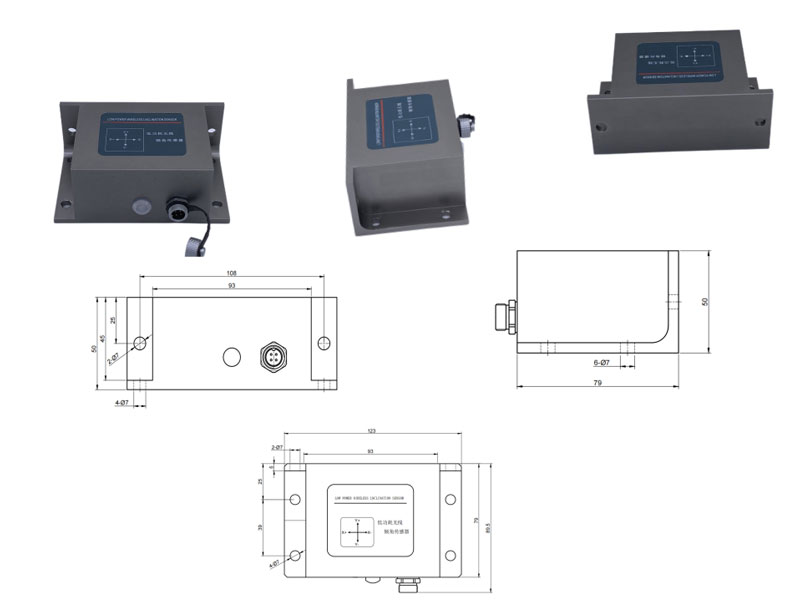

2. Wireless IOT Inclinometer Dimensions

3. Wireless IOT Inclinometer Main Features

Dual-axis inclination detection

Range ±30°

Output interface RS485

Working voltage DC3.6V

Scheduled reporting and triggered reporting

Accuracy 0.01°

Built-in horizontal displacement calculation function

Resolution 0.001°

Response frequency 100Hz

Shock resistance>20000g

Wide operating temperature range -40～+85℃

Protection grade IP67

4. Wireless IOT Inclinometer Application Fields

High voltage power tower monitoring

Railway locomotive monitoring

Comprehensive Pipeline Gallery

Ancient trees and electric towers

Subway tunnels, geological disaster slopes

Bridge and foundation pit measurement

Houses and ancient buildings

5. Wireless IOT Inclinometer Technical Parameters
