Life Detection Radar System

1.Functional features of Life Detection Radar System :

1.Radar function: Integrating millimeter wave radar technology and biomedical engineering technology, it has the ability to sense through walls (non-metal building materials).

2.Video function: Video information can be obtained in real time to understand the rescue information of the trapped people and observe the environment of the trapped people.The video can also be saved or viewed to facilitate the rescue team to conduct detailed screening of the information or the on-site environment.Conduct a rescue assessment.

3.Audio function: Equipped with a highly sensitive audio detector, which can monitor distress signals sent by trapped persons to cooperate with rescue efforts.

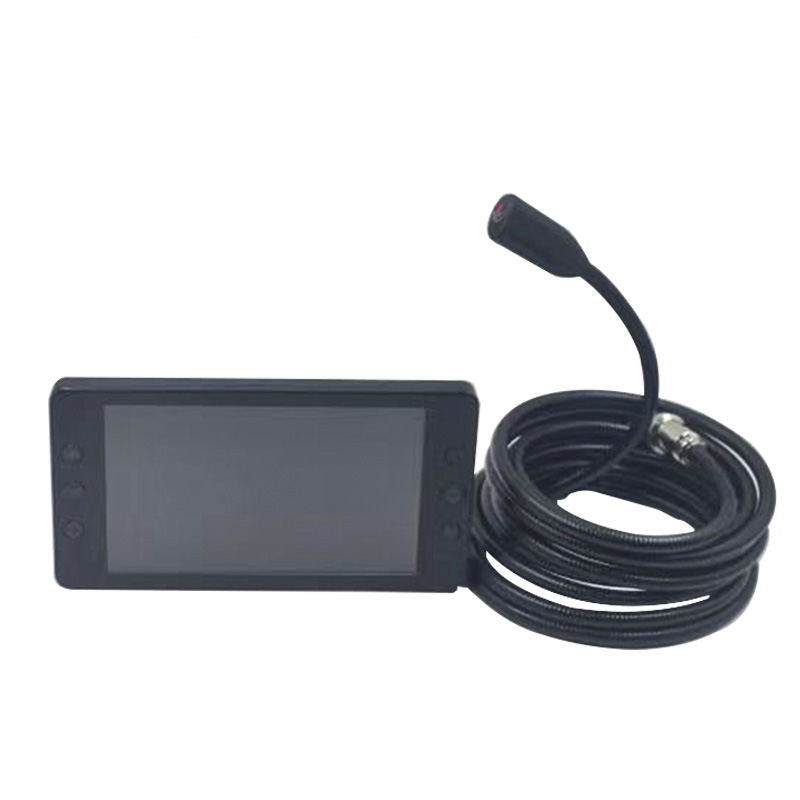

4.Snake tube design: Trapped people are often in places with small spaces and difficult to reach by large equipment.The snake tube can extend into small gaps and has certain bending operability, so that the trapped people can be reached to the maximum extent., thereby obtaining more precise information.

5.Hydraulic expansion: It can be used directly to rescue the recipients, or it can be used when the snake tube cannot extend into the gap.

6.The system supports Chinese, Japanese, English, Korean, French and other languages.

2.Product parameters of Life Detection Radar System:

◆Execute the GB 4943.1-2022 "Information and Communication Technology Equipment Part 1" standard;

◆Radar detection distance: ≤40 meters (varies due to different blocking environments)

◆Screen: 7-inch LCD screen

◆Video pixels: 1 million pixels

◆Memory: 32GB

◆Night vision: equipped with 6 940 band infrared lights (invisible to the naked eye)

◆Probe size: length 62mm×width 24mm×thickness 12mm

◆Snake tube length: 5 meters

◆Hydraulic expander: Tonnage---8T Large opening distance---56mm

◆Working power supply: voltage 5V, built-in 5000mA lithium battery (lasts about 10 hours);

◆Outer box size: length 455mmx340mmx130mm

◆Product weight: 7kg (including aluminum box)

This product is a multi-functional rescue equipment that integrates advanced radar technology, highly sensitive signal receiver, audio and video technology, and smart chips.It can be used to search and rescue people trapped in natural disasters, and can cope with narrow spaces, darkness environment, wall occlusion and other complex environments, and efficiently complete the search for the target area in one go.The detector is light in weight, small in size, easy to operate, can be equipped by individual soldiers, and can be widely used in fire rescue, military reconnaissance, security inspection and other tasks.
