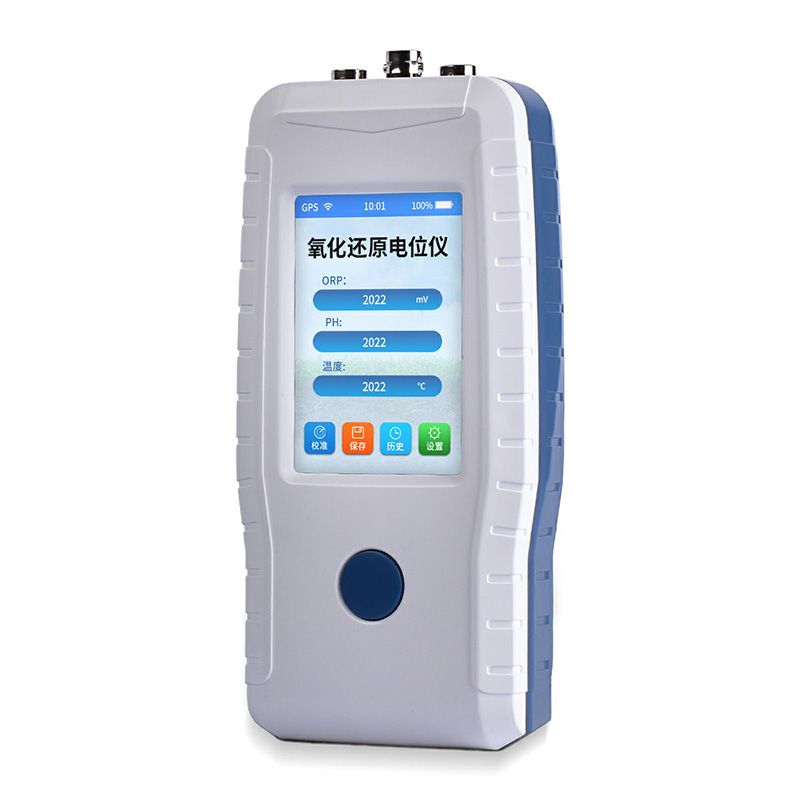

Multiparameter Water Quality Meter

1、Multiparameter Water Quality Meter Product Introduction

The oxidation-reduction potential (ORP) is a very important water quality indicator.While it cannot independently reflect water quality, it can be used in conjunction with other water quality indicators to reflect the ecological environment of aquatic systems.

1.Industrial Wastewater Treatment: Used in water treatment for redox systems, primarily for the reduction of chromic acid and the oxidation of cyanide.

2.Water Disinfection and Applications: The ORP can measure the disinfection effectiveness of swimming pool water, mineral water, and tap water.Because the bactericidal efficiency of E.coli in water is related to the ORP, the ORP is a reliable indicator of water quality.

3.Aquaculture: The ORP reflects the concentration of certain inorganic substances in water, the status of aquatic organisms, and the oxygen content.It reflects the macroscopic redox characteristics of water and serves as a comprehensive indicator of water quality.

2、Multiparameter Water Quality Meter Implementation Standards

SL94-1994 Determination of Redox Potential (Potentiometric Method)

3、Multiparameter Water Quality Meter Product Parameters

1.ORP:

Measurement range: -2000mV-2000mV

Resolution: 0.1mV

Error range: ±10mV

2.pH:

Measurement range: 0-14pH

Resolution: 0.1

Error range: 0.05pH

3.Temperature:

Measurement range: 5-60°C

Resolution: 0.1°C

Error range: ±1°C

4.External power supply: DC 5V/2A

5.Rated power: 3W

6.Battery capacity: 6000mAh

4、Multiparameter Water Quality Meter Product Features

ARM Cortex-M3 processor, Android system.

Standard USB-C charging allows you to charge the device directly with a mobile phone charger.

Continuous testing, with data collection time adjustable in minutes.

Calibration supported.

Built-in high-capacity lithium battery.

Displays remaining battery life.

Automatic temperature compensation and supports manual temperature compensation.

Comes with a dedicated ORP electrode, temperature sensor, and stainless steel hollow rod for direct insertion into the soil.

Reading lock (auto-reading) ensures final results, eliminating the need for conversions or calculations.

Test results can be uploaded.

Test results can be exported to Excel for viewing on a computer.

Stores 5 million test results for data storage and review.

Wi-Fi support allows direct transmission of test results to the monitoring platform.

3.5-inch color touchscreen provides an enhanced user experience.

Automatic backlight adjustment and sleep timer settings.

P65 protection rating.
