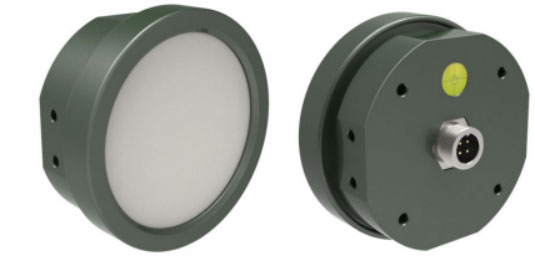

Radar water level sensor
Model：FT-LD1
Brand：fengtu
1.Radar water level sensor product overviewRadar water level sensor is specially designed for water level ranging. The module adopts FMCW mode and non-contact installation design, with small size and compact structure. It has high accuracy, low power consumption and strong anti-interference ability.
Get a Free Quote- Product details
- Related products
- Related articles
1.Radar water level sensor product overview
Radar water level sensor is specially designed for water level ranging. The module adopts FMCW mode and non-contact installation design, with small size and compact structure. It has high accuracy, low power consumption and strong anti-interference ability. It is suitable for water level monitoring of lakes and rivers, mountain torrent warning, reservoirs, sewage pipe networks, etc.
2. Main parameters of Radar water level sensor products
| parameter | symbol | Minimum | Typical Value | Maximum | unit | illustrate | |
| transmitter | |||||||
| Transmitting frequency | ƒ | 77 | 81 | GHz | Bandwidth 4G | ||
| Output power (EIRP) | Pout | 13 | 20 | dBm | |||
| Antenna Angle (Refer to Figure 4) | |||||||
| Beam width | (-3dB) | horizontal direction | 14 | ° | |||
| Vertical | 10 | ° | |||||
| power supply | |||||||
| Operating Voltage | VCC | 9 | 12 | twenty four | V | ||
| Working current | ICC | 20 | mA | Typical Value | |||
| environment | |||||||
| Operating temperature | TOP | ﹣45 | +85 | ℃ | |||
| Dimensions (L x W x H) | Φ74 x 29.7 (with housing), 60x38x1.2 (module) | mm | |||||
| weight | 100 | g | |||||
| measurement standard: | |||||||
| Distance measurement range | 0.1~40m | ||||||
| measurement accuracy | ±5mm | ||||||
| Resolution | 1mm | ||||||
| Data refresh | 40ms fastest | ||||||
Note: The radar works at 80 GHz and has a maximum range of 40 meters.
The size of RCS will cause deviation in the maximum detection distance.

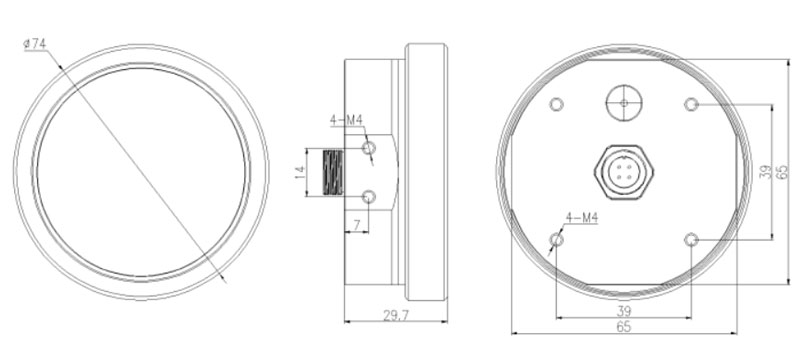

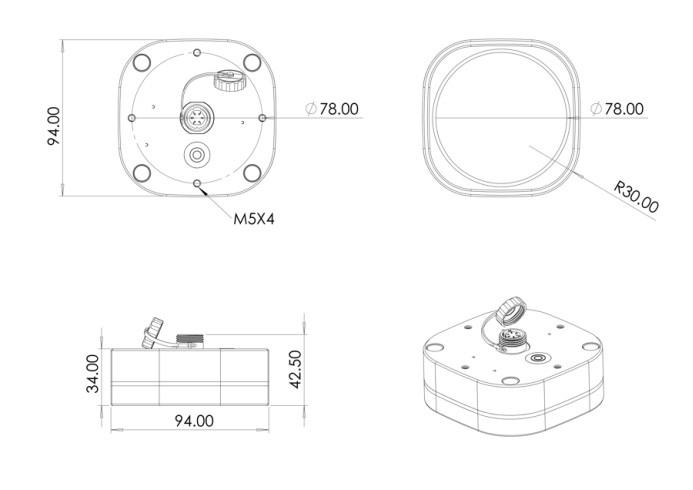

3. Radar water level sensor product size
