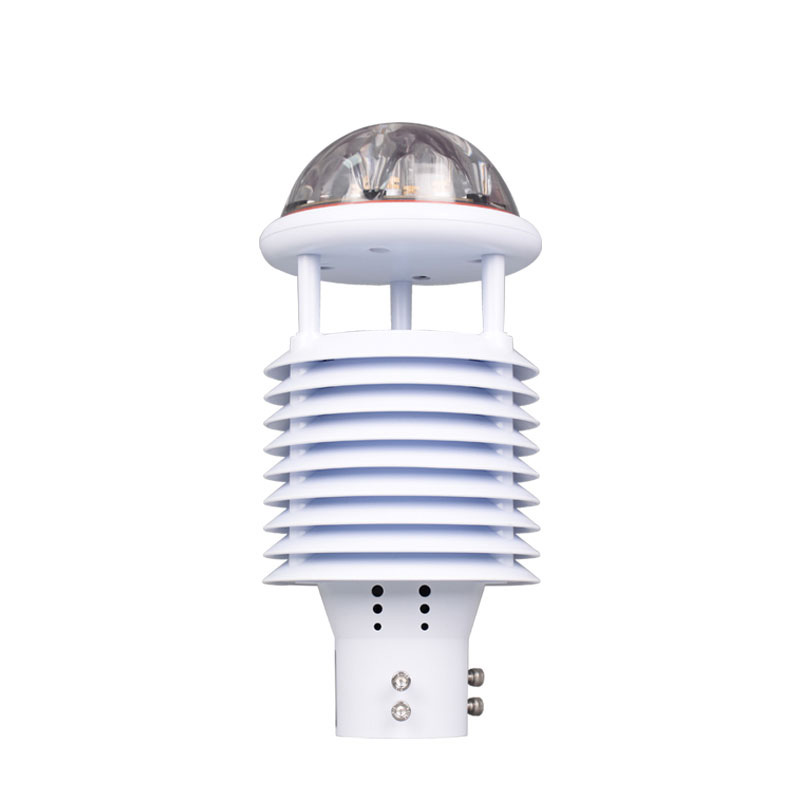

Ultrasonic Automatic Weather Sensor

1.Ultrasonic Automatic Weather Sensor Product Introduction

Shandong Fengtu Internet of Things Technology Co., Ltd., as a company specializing in the development, production and sale of micro-meteorological instruments, has been committed to the promotion and application of micro-meteorological instruments and meteorological environment solutions. With a complete production chain, a strong technical team and a comprehensive marketing team, the meteorological products we develop and produce, such as ultrasonic wind speed and direction instruments, five-element micro-meteorological instruments, six-element micro-meteorological instruments and small automatic weather stations, have been widely used in meteorological monitoring, urban environmental monitoring, wind power generation, marine vessels, aviation airports, bridges and tunnels, etc., with customers all over the country, and have achieved good social and economic benefits.

Compared with traditional micro-meteorological instruments, our products overcome the need for high-precision timers and avoid inaccurate measurements caused by sensor startup delays, demodulation circuit delays, and temperature changes.

Ultrasonic Automatic Weather Sensor, also known as the atmospheric pollution environment monitor, is a highly integrated instrument developed by Shandong Fengtu Internet of Things Technology Co., Ltd. to monitor six pollutant parameters, including PM2.5, PM10, CO, SO2, NO2, and O3, as well as 12 parameters, including air temperature, air humidity, wind speed, wind direction, atmospheric pressure, and optical rainfall, in response to the increasingly severe environmental situation. Its main function is to conduct 24-hour continuous online monitoring of conventional pollution factors and meteorological auxiliary parameters in the air, and provide the analyzed data to the Environmental Protection Bureau as a reference for air quality and to assist in environmental protection decision-making. In addition, hydrogen sulfide, volatile organic pollutants, solar radiation, noise, etc. can be optionally configured.

Ultrasonic Automatic Weather Sensor can be applied to urban grid environment monitoring and control, smart street lights, scenic area environment monitoring, factories or mines, construction sites (construction site dust monitoring), urban roads, highways, public places and other places involving air quality monitoring.

2. Ultrasonic Automatic Weather Sensor Product Features

1. The ultrasonic probe is hidden in the top cover to avoid interference from rain and snow accumulation and avoid being blocked by natural wind (utility model patent, patent number ZL 2020 2 3215713.X)☆

2. The principle is to emit a continuously variable frequency ultrasonic signal and detect the wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5)☆

3. PM2.5, PM10, CO, SO2, NO2, O3, temperature, humidity, wind speed, wind direction, atmospheric pressure, optical rainfall twelve elements integrated (utility model patent, patent number ZL 2020 2 3215649.5)☆

4. Using advanced sensing technology, real-time measurement, no start-up wind speed☆

5. Strong anti-interference ability, with watchdog circuit and automatic reset function to ensure stable operation of the system

6. High integration, no moving parts, zero wear

7. Maintenance-free, no need for on-site calibration

8. ASA engineering plastics are used for outdoor applications without discoloration all year round

9. The product design output signal is standardly equipped with RS485 communication interface (MODBUS protocol); 232, USB, Ethernet interface are optional, supporting real-time data reading☆

10. Optional wireless transmission module, minimum transmission interval 1 minute

11. The probe adopts a snap-on design, which solves the problem of looseness during transportation and installation☆

3. Ultrasonic Automatic Weather Sensor Technical Parameters

1. Wind speed: Measurement principle: ultrasonic, 0-60m/s (±0.1m/s), resolution: 0.01m/s; (invention patent, patent number: ZL 2021 1 0237536.5)

2. Wind direction: Measurement principle: ultrasonic, 0-360° (±2°); resolution: 1°; (invention patent, patent number: ZL 2021 1 0237536.5)

3. Air temperature: Measurement principle: diode junction voltage method, -40-60℃ (±0.3℃), resolution 0.01℃; (Calibration certificate from Beijing Meteorological Bureau)

4. Air humidity: Measurement principle: capacitive, 0-100%RH (±3%RH), resolution: 0.1%RH; (Calibration certificate from Beijing Meteorological Bureau)

5. Atmospheric pressure: Measurement principle: piezoresistive, 300-1100hpa (±0.25%), resolution: 0.1hpa; (Calibration certificate from Beijing Meteorological Bureau)

6.PM2.5: 0-1000ug/m3 (±10%)

7.PM10: 0-1000ug/m3 (±10%)

8. Optical rainfall: 0-4mm/min (≤±4%) (invention patent, patent number ZL 2022 1 1306149.3)

9. Carbon monoxide: 0-1000ppm (±2PPM)

10. Sulfur dioxide: 0-20PPM (±1PPM)

11. Nitrogen dioxide: 0-20PPM (±1PPM)

12. Ozone: 0-20PPM (±1PPM)

13. Power: 0.84W

14. The manufacturing enterprise has ISO quality management system, environmental management system and occupational health management system certification☆

15. The manufacturer has a computer software registration certificate☆

16. The manufacturer is a 3A credit enterprise☆

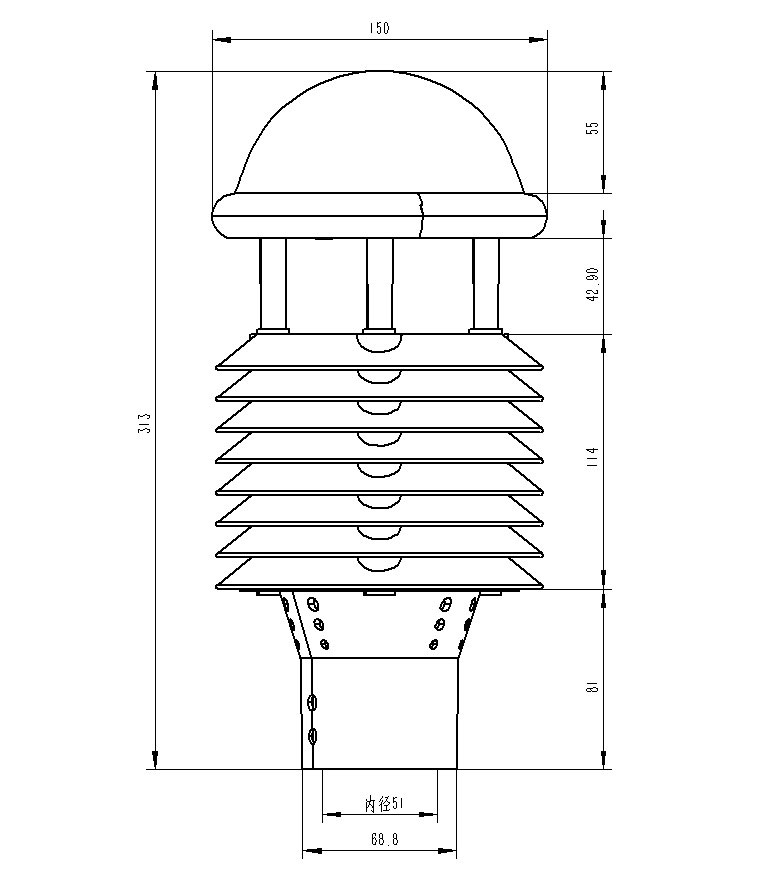

4. Ultrasonic Automatic Weather Sensor Product Dimensions

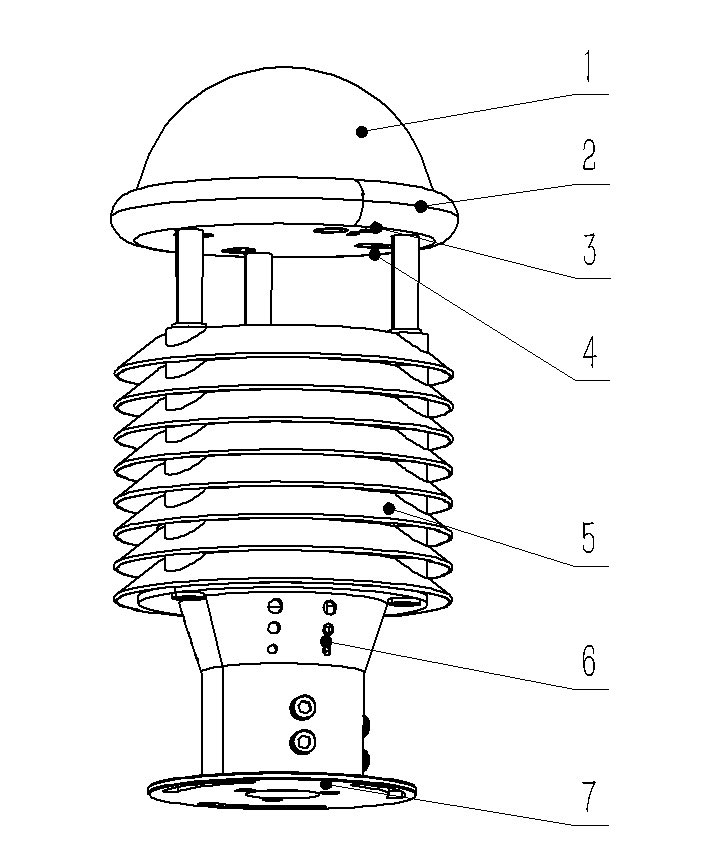

5. Ultrasonic Automatic Weather Sensor Product Structure Diagram

1. Optical rain sensor

2. Control circuit

3. North arrow

4. Ultrasonic wind speed and direction

5. Venetian blinds PM2.5, PM10, carbon monoxide, sulfur dioxide, nitrogen dioxide, ozone

6. Temperature, humidity and air pressure monitoring location

7. Bottom fixing flange

VI. Ultrasonic Automatic Weather Sensor Product Wiring Definition
