Crop Growth Monitoring Enabling All-Weather Video Monitoring and Automated Early Warning for Crop Growth

Crop Growth Monitoring utilizes high-definition video cameras to provide real-time monitoring of crop growth and development, supporting both daytime visual imaging and nighttime infrared imaging. The device integrates meteorological sensors, soil moisture sensors, and pest forecasting lamps to automatically monitor field crop conditions, pest infestations, and potential disasters. By remotely observing crop growth status, managers can provide targeted guidance on irrigation, fertilization, and pesticide application based on the specific requirements of different growth stages; the system is suitable for a wide range of environments, including open fields and greenhouses.

Crop Growth Monitoring is an automated monitoring device designed specifically for managing the crop growth process. It primarily employs a video surveillance system to capture real-time imagery of field crop conditions, pest and disease outbreaks, and various environmental hazards. Supporting both daytime color imaging and nighttime infrared imaging capabilities, the system ensures continuous, all-weather visual monitoring. The system can integrate with meteorological sensors, soil moisture sensors, and pest forecasting lamps to simultaneously perceive multi-dimensional environmental factors affecting crop growth, thereby establishing an integrated, automated monitoring capability for crop conditions, pest activity, and disaster situations.

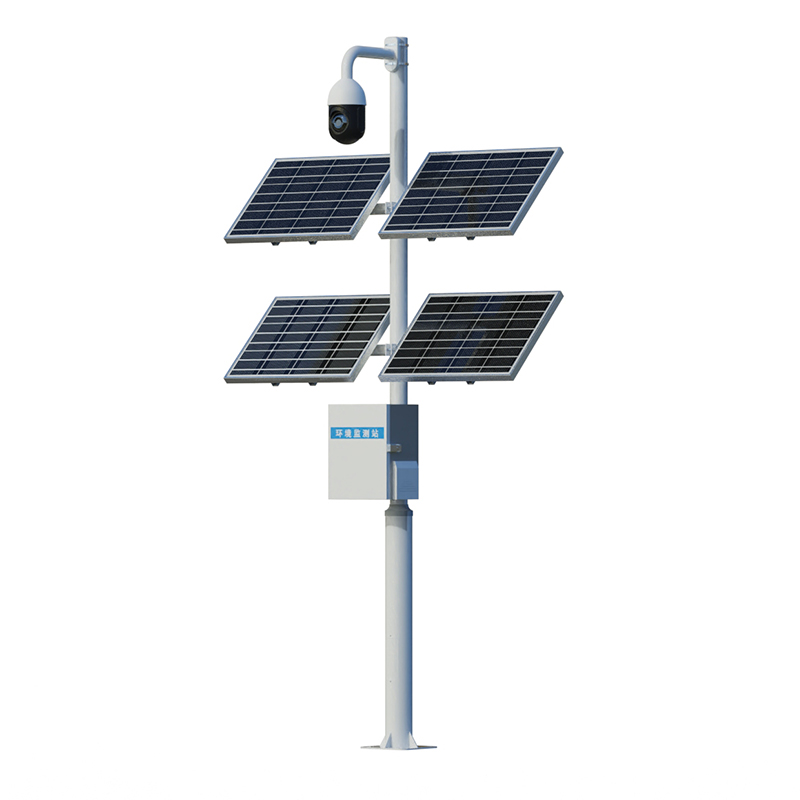

The video surveillance unit typically consists of high-definition PTZ (Pan-Tilt-Zoom) dome cameras or fixed-lens bullet cameras, strategically installed at elevated vantage points within the field. These cameras offer 360-degree rotation and remote zoom control, enabling them to clearly capture changes in leaf color, plant density, lodging (falling over), and the specific characteristics of pest and disease damage. The nighttime infrared mode ensures that effective imagery can still be acquired under low-light or no-light conditions, allowing for the documentation of nocturnal pest activity patterns and the impact of low temperatures or frost. Image data is transmitted in real-time via 4G or fiber-optic networks to a cloud-based platform, allowing managers to view live field footage and historical imagery directly from their computers or mobile devices.

Regarding the integration of meteorological and soil moisture sensors, the monitoring station can be configured with sensors to measure air temperature and humidity, wind speed and direction, rainfall, and photosynthetically active radiation (PAR). Additionally, sensors for soil temperature and moisture, electrical conductivity (EC), and nitrogen, phosphorus, and potassium (NPK) levels can be deployed to comprehensively collect data on the crop's growth environment. The pest forecasting lamps utilize specific wavelengths of light to attract phototactic (light-seeking) pests; they automatically capture images of the insects, identify the specific pest species and their quantities, and—in conjunction with meteorological data—analyze trends in pest and disease outbreaks. Administrators can utilize the platform to remotely monitor crop growth dynamics and, based on the specific water, nutrient, and pest/disease control requirements of different growth stages, formulate precise plans for irrigation, fertilization, and pesticide application. For instance, during the jointing stage—when water demand increases—soil moisture data falling below a predefined threshold can trigger an irrigation recommendation; similarly, if an increase in aphid populations is detected during the heading stage, this data can be combined with weather forecasts to identify the optimal timing for aerial spraying operations. The system supports the configuration of alert rules, automatically pushing warning notifications whenever monitored values deviate from the normal range, thereby assisting users in taking timely remedial actions.

Crop Growth Monitoring is widely deployed across open-field farming, facility agriculture, and research and educational settings. In open-field production, it enables the monitoring of population structure dynamics and the impact of environmental hazards on staple crops such as wheat, rice, and maize. In greenhouse cultivation, the system facilitates the precise sensing of the microclimate environment to regulate temperature and humidity, thereby preventing the onset of plant diseases. Agricultural research institutions utilize these monitoring stations to record imagery and environmental data throughout the entire crop growth cycle, enabling the analysis of varietal adaptability and the efficacy of various cultivation techniques. Furthermore, agricultural administrative bodies can network multiple monitoring stations to gain a comprehensive overview of regional crop growth conditions, providing a robust basis for disaster assessment and production guidance.

The application of this system contributes to elevating the standard of precision agricultural management, mitigating the uncertainties associated with experience-based decision-making, and reducing input costs for water, fertilizers, and pesticides, while simultaneously enhancing both crop yield and quality. Moreover, through the long-term accumulation of data, the system facilitates the development of sophisticated crop growth models and pest/disease prediction models, thereby driving the advancement of digital and smart agriculture.
