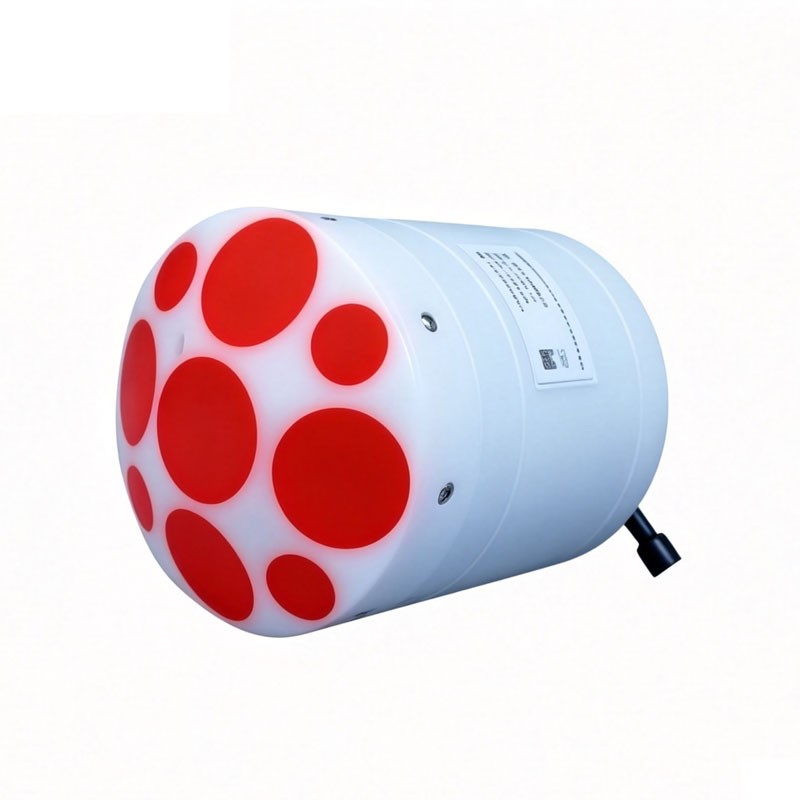

River ADCP
Model：ADCP-1+
Brand：fengtu
River ADCP Product introduction and technical parameters:CompositionTechnical SpecificationsParametersFlow rate measurementOperation ModeDirect readingProfile scope0.06-40mFlow measurement accuracy (typical)±0.25%±2mm/sFlow rate resolution1mm/sSpeed test range±20.0m/sFlow measurement range0-360°
Get a Free Quote- Product details
- Related products
- Related articles
River ADCP Product introduction and technical parameters:
| Composition | Technical Specifications | Parameters |
| Flow rate measurement | Operation Mode | Direct reading |
| Profile scope | 0.06-40m | |
| Flow measurement accuracy (typical) | ±0.25%±2mm/s | |
| Flow rate resolution | 1mm/s | |
| Speed test range | ±20.0m/s | |
| Flow measurement range | 0-360° | |
| Flow measurement accuracy | ±2° | |
| Number of units | 1-255 | |
| Unit layer thickness | 0.02-4m | |
| Transducer | Beam count | 9 transducers; dual 4-beam 3.0MHz/1.0MHz Janus; 1 0.5MHz vertical beam echo sounder |
| Beam angle | 25° | |
| Deep measurement | Height measurement resolution | 0.001m |
| Height measurement accuracy | 1% (full water column speed of sound corrected to 0.02%) | |
| Height measurement range | 0.2-80m | |
| Flow measurement | Bottom tracking range | 0.3-40m |
| GNSS/GPS Range | 0.3-80m, extrapolation for over 40m | |
| Internal storage | 64GB | |
| Water depth terrain measurement | Scope | 40m (slant beam) - 80m (vertical beam) |
| Velocity profile measurement range | ±10.0m/s | |
| Communication | Communication Interface | RS-232 or RS-422 |
| GNSS/GPS Communication | RS-232 Serial Input | |
| Maximum data refresh rate (output rate) | 2Hz | |
| Internal sampling rate | Maximum 70Hz | |
| Sensor | Temperature sensor | Accuracy: ±0.1℃; Resolution: 0.01℃ |
| Pressure sensor | Range: Determined by the depth rating; Accuracy: ±0.25%; Resolution: 1mm | |
| Attitude compass sensor | Range: Heading 0-360°; Accuracy (RMS): Roll ±1° | Pitch ±1° | Heading 0.8°; Resolution: 0.01° | |
| Power supply | Power supply interface | 10-26V |
| Structure | Casing material | POM |
| Environment | Operating temperature | -5℃-45℃ |
| Storage temperature | -40℃-70℃ | |
| Physical properties | Pressure depth | 50m |
| Weight (in air) | ≤1.5kg | |
| Size | Φ128mm×168mm | |
| Optional | Available options | - |
