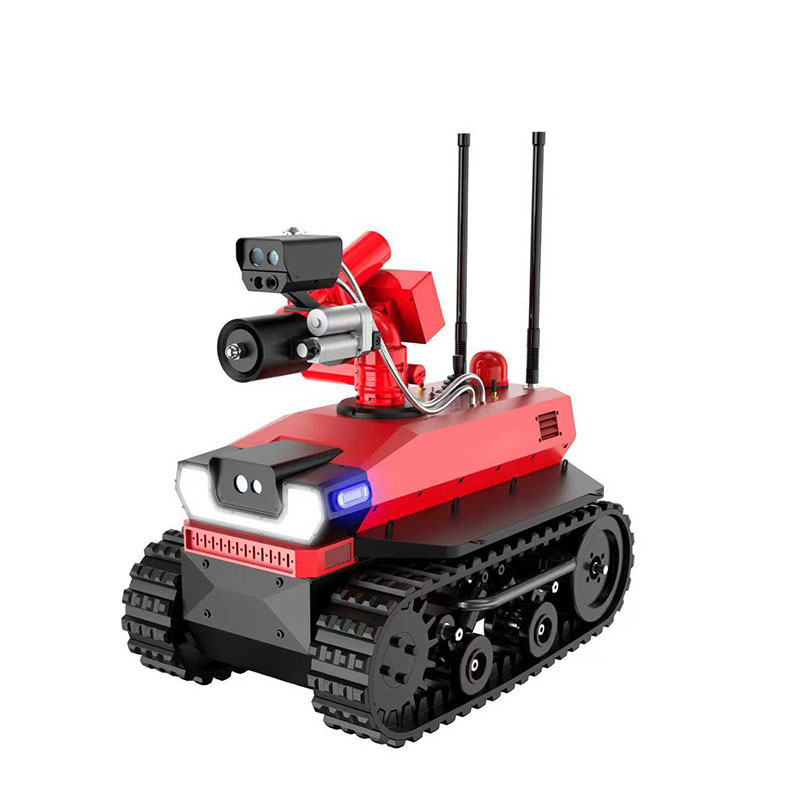

Firefighting robot

Firefighting robot product Introduction

1.Main Application Scenarios: Used for firefighting in various special and confined spaces.

2.Structural Composition: Consists of a robot chassis, robot superstructure, fire monitor, remote control, and other components.

3.Robot Functions: The robot has functions such as firefighting, environmental reconnaissance, lighting, two-way communication, and voice broadcasting.★

4.Dimensions and Weight: Overall weight ≤ 100kg (including battery), dimensions ≤ 800mm (length) x 600mm (width) x 800mm (height).

5.Straight-line Speed: Straight-line speed on level ground ≥ 1.0m/s, speed control mode: control range: 0-3.6km/h, continuously variable speed.

6.Terrain Adaptability: The robot uses track drive, with ≥2 drive wheels, capable of turning in place; climbing ability ≥ 30°, tipping angle: ≥ 30°.

7.Maximum Traction Force: ≥ 110kg.

8.Fire Monitor Technical Requirements: Maximum flow rate (water) ≥ 20L/s; maximum range (water) ≥ 30m; equipped with ≥ 2 spray modes: columnar spray and mist spray; horizontal rotation angle: left -30° to right +30°; pitch angle: 0° to +70°, self-swing angle adjustment range: left -20° to right +20°; rated working pressure: 0.8MPa, working pressure range: 0.8~1.2MPa.★

9.Limit Device: Limit devices are installed at the start and end points of the moving joints of the on-board equipment.The limit devices should reliably stop the movement under rated load or maximum speed without overshooting.

10.Mechanism Movement: The pitching, rotating, and transmission mechanisms of the on-board equipment should operate flexibly, safely, and reliably.

11.Water Hose Detachment Device: Equipped with a remote water hose detachment device, allowing for one-button remote detachment of the water hose.12.Dual-camera technology requirements: Infrared thermal imaging detector pixel resolution ≥ 384x288, field of view ≥ 48°×38°; visible light detector pixel resolution ≥ 1920×1080, field of view ≥ 90°×48°; equipped with AI recognition function, AI recognition distance ≥ 20m, recognition types ≥ 3 (people, vehicles, fire sources), and capable of marking distances; video screen with driving assistance lines; number of infrared thermal imaging detectors ≥ 2, number of visible light detectors ≥ 2; equipped with laser ranging function, detection distance ≥ 150m; equipped with auxiliary green light fire point positioning function, positioning distance ≥ 150m.★

13.Lighting and warning functions: Equipped with front and rear lights, front light (white light) with ≥ 20 LEDs, rear light (yellow light) with ≥ 8 LEDs; equipped with red and blue flashing lights, ≥ 8 LEDs; equipped with sound and light alarm lights, meeting the requirements for providing a certain level of illumination and warning in the fire fighting operation area.★

14.Leakage detection function: Detection voltage range 120V/60Hz or 220V/50Hz or 380V/50Hz; 7.2kV/50Hz or 15kV/50Hz, no contact with the power source required, capable of detecting leakage in traditional unshielded power lines ≥ 150 meters away and 120V/240V/380V lines ≥ 5 meters away.★

15.Gas detection function: capable of detecting ≥ 8 types of gases.★

16.Remote control functions: Supports horizontal and vertical adjustment of the water cannon, supports forward and backward movement and left and right steering control of the vehicle body, speed adjustment, has a voice communication function, supports switching on and off of front and rear lights, and has functions such as screen switching, mode selection, and page turning; the main screen displays ≥ 2 split screens, capable of displaying real-time images from the water cannon and vehicle body dual-camera; the secondary screen can display working condition information such as toxic and combustible gas concentration, leakage detection status, temperature, laser ranging values, and latitude and longitude.The remote control weighs ≤3kg and features a portable lanyard and hook; it has ≥2 screens, with the main screen size ≥7 inches and resolution ≥1280*800, and the secondary screen size ≥2.5 inches and resolution ≥480*320.★

17.Wireless transmission distance ≥800m.★

18.Built-in rechargeable battery, continuous working time ≥4 hours.

19.Protection level ≥IP65.

20.Provide a test report issued by a national-level testing and inspection institution, and the report should be complete and valid.
