Pet virus detector

1、Pet virus detector Product Overview

Based on real-time fluorescence quantitative PCR technology, this product focuses on the accurate detection of pathogen nucleic acids in animal body fluids and tissue samples. Semiconductor temperature control ensures stable amplification, and multi-channel parallel processing supports both qualitative and quantitative analysis. It is suitable for both laboratory and on-site use in farms. With simple operation and automatic report generation, it facilitates early screening and control of diseases, reducing farming risks.

2、Pet virus detector System Components

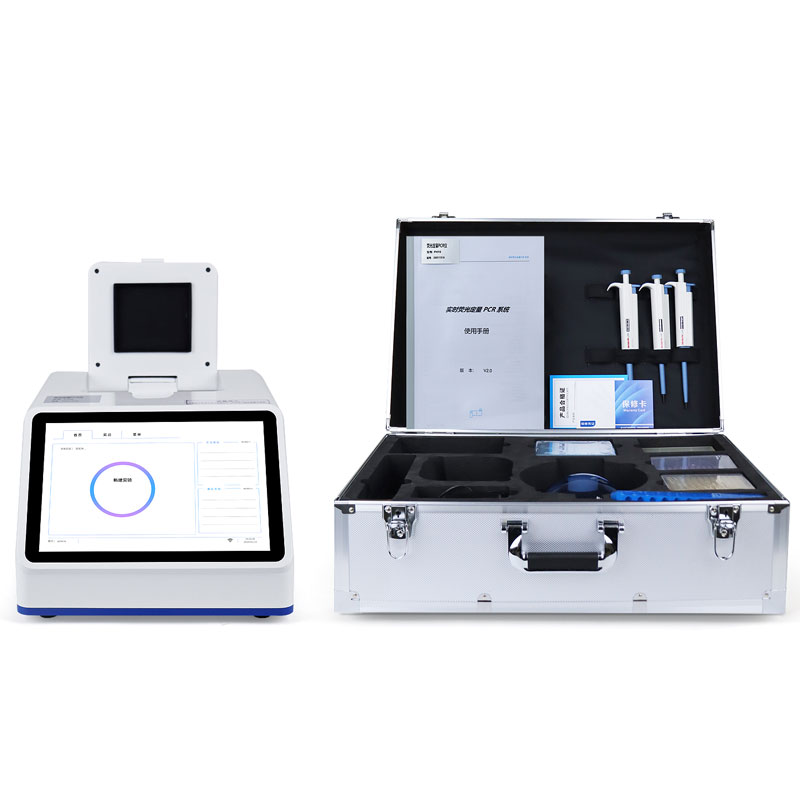

Pet virus detector consists of a four-channel, 16-well fluorescence quantitative PCR instrument and a portable accessory case.

3、Pet virus detector Application Areas

Basic scientific research, pathogen detection, pet testing, livestock disease detection (cattle, sheep, poultry such as chickens, ducks, and geese, and aquatic animals such as fish and shrimp)

4、Pet virus detector Technical Specifications

1. Features a high-specification aluminum alloy sample holder with excellent thermal conductivity, corrosion resistance, and oxidation resistance, along with Peltier heating and temperature control, and a comprehensive sealing design. Neither sample solution nor condensed water will leak into the Peltier temperature control element or other electronic components below the sample holder, effectively extending the instrument's lifespan.

2. Utilizes a high-precision PT1000 temperature sensor, achieving a temperature control accuracy of 0.01℃, ensuring precise temperature control.

3. Sample throughput: 0.2ml single tube, 0.2ml 8-tube strip.

4. Open reagent and consumable system: Compatible with reagents from any brand, suitable for standard 0.2ml single tubes and 0.2ml 8-tube strips.

5. Employs four high-intensity, broad-spectrum, long-life LED solid-state light sources (blue, green, red, and yellow), ensuring strong light intensity across the entire spectral detection range, improving detection sensitivity. These LEDs are also heat-free, have a long lifespan, and require no maintenance.

6. High-sensitivity detector: Uses a high-sensitivity photomultiplier tube imported from Japan, resulting in higher detection sensitivity.

7. No optical path correction required: The scanning system ensures that the signal excitation and detection optical paths are completely consistent for each well, eliminating the need for optical path correction. This frees up a correction channel, enabling true four-channel gene detection. ★

8. Number of channels: 4 channels.

9. Channel crosstalk: High-precision narrow-band filters are used to greatly reduce channel crosstalk, and the software can also correct crosstalk parameters. 10. Detection Sensitivity: Capable of detecting single-copy DNA templates, and clearly distinguishing between 1000 and 2000 copies of plasmid DNA.

11. Linear Detection Range: 10 orders of magnitude ★

12. Supports common fluorescent dyes and probe detection methods, such as SYBR Green I, Eva Green, Taqman, FRET, Molecular Beacons, Scorpions, Amplifluor, etc.

13. Module Temperature Range: 4-99℃

14. Control Mode: Built-in PCR operating system on the system screen or Windows computer ★

15. Interface: USB connection to computer

16. Operating Noise: Silent technology, maximum operating noise does not exceed 60dB during operation.

17. Operating and Analysis Software

17.1 Allows defining sample wells after running the program, saving experimental time.

17.2 Allows opening other experimental data results for viewing and analysis simultaneously while the program is running.

17.3 The software automatically calculates the baseline range and sets the threshold line, providing users with reliable and accurate data results.

17.4 Experimental program settings and detection results can be directly printed as an experimental report, supporting export in various file formats and data styles such as XLS, CSV, and WORD ★

17.5 Results from the same batch of experiments can be grouped for independent data analysis, with a maximum of 2 groups.

17.6 Provides both Chinese and English software interfaces. ★

17.7 The software can be installed on multiple computers without limitation, requiring no payment for usage rights, and offers free lifetime upgrades. ★

Pet virus detector Instrument technical specifications
