Coal Mine Lightning Early Warning System Leverages Digital Detection Technology to Enhance Lightning Protection Monitoring Precision

The coal mine lightning early warning system employs a fully digital electric field detection architecture, integrating MEMS (Micro-Electro-Mechanical Systems) and charge-sensing technologies to establish its monitoring framework. By optimizing warning algorithms to mitigate false alarms caused by environmental interference, the system delivers precise, short-term lightning warnings within a 15-kilometer radius, meeting the safety and operational protection needs of complex mining environments.

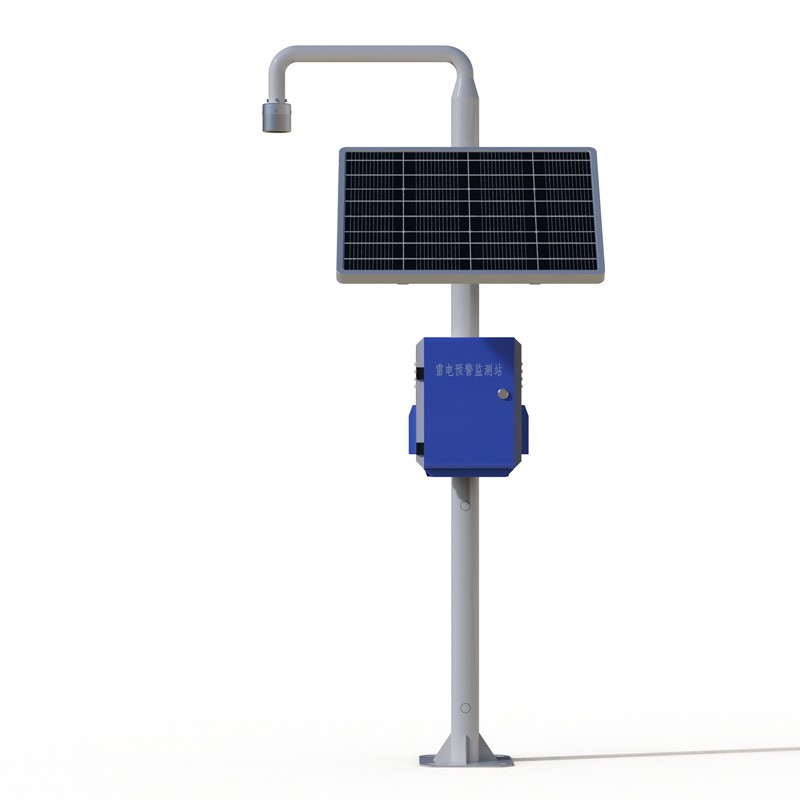

Specifically developed for safety-critical mining operations, this professional lightning monitoring system replaces traditional mechanical detection structures with a design free from motors or other vulnerable moving parts. It utilizes proven charge-sensing principles and MEMS technology for core electric field detection. The system is compact, energy-efficient, and highly stable, offering flexible installation and networking capabilities to suit various mining site layouts. It comprises a comprehensive hardware suite and a cloud-based monitoring platform—including lightning warning sensors, a data processing unit, a solar power system, a three-level audible-visual alarm, and a cloud data display module—designed to withstand harsh outdoor mining conditions characterized by a lack of grid power, heavy dust, and adverse weather.

Equipped with an optimized warning algorithm that combines electric field differentiation with threshold-based logic, the system overcomes the limitations of traditional single-threshold methods. It effectively prevents false or erroneous alarms triggered by environmental factors such as rain, high winds, snow, and dust, thereby significantly enhancing the accuracy of lightning monitoring and alerts. The system delivers stable detection performance with an electric field measurement range of -100 kV/m to +100 kV/m, a resolution of 0.1 V/m, and an accuracy of ±0.001% F.S. It provides full coverage within a 15-kilometer radius and detects charge fluctuations in thunderstorm clouds in advance, ensuring sufficient time for emergency response actions at the mine site.
