Integrated Mini Weather Station Enables Rapid Monitoring of Multi-Element Meteorological Environments in the Field

This integrated mini weather station is a high-precision automatic meteorological observation device. It integrates ten meteorological sensors, features low power consumption and easy installation, supports multiple data transmission methods, and can continuously monitor meteorological environmental data in fields, farmland, construction sites, and other scenarios 24 hours a day.

This integrated mini weather station is a highly integrated, low-power, and quickly installable high-precision automatic meteorological observation device suitable for field monitoring. The device requires no debugging and can be quickly deployed upon delivery. It is adaptable to various complex outdoor operating scenarios and is widely used in meteorology, agriculture, forestry, environmental protection, marine science, airports, ports, scientific research, education, and construction sites.

Compared to traditional ultrasonic weather stations, this integrated mini weather station overcomes the reliance on high-precision timers, effectively avoiding measurement inaccuracies caused by sensor start-up delays, demodulation circuit delays, and temperature changes, thus improving the data stability of long-term outdoor monitoring. The device is equipped with a ten-element integrated sensor, enabling real-time observation of multiple meteorological elements including wind speed, wind direction, temperature, humidity, air pressure, light intensity, optical rainfall, PM2.5, PM10, and noise. It achieves continuous online monitoring of outdoor meteorological parameters 24/7 and outputs all monitored parameters to the user via a digital communication interface.

The integrated mini weather station features a top-covered concealed ultrasonic probe design, reducing interference from rain and snow accumulation and avoiding data errors caused by wind obstruction. Wind speed and direction detection relies on emitting continuously variable frequency ultrasonic signals, with data calculation performed by measuring the relative phase. A variety of transmission methods are available; the device comes standard with GPRS and offers optional RJ45 Ethernet, 4-20mA, LoRa transparent transmission, 4G transparent transmission, Bluetooth, and 485 to USB, accommodating wired and wireless data upload needs.

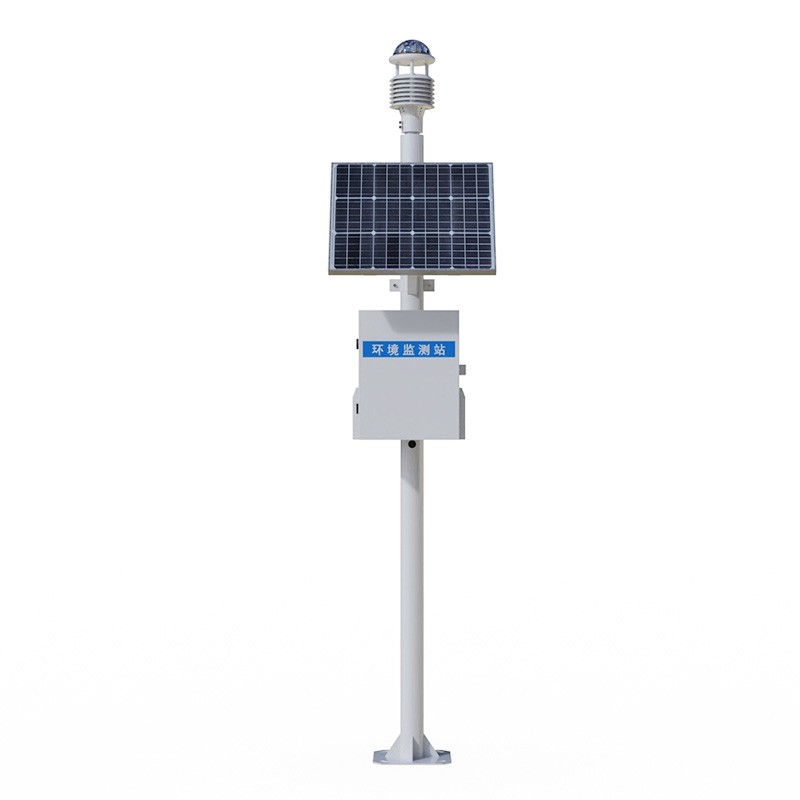

The integrated mini weather station comes with a two-meter carbon steel bracket, allowing for direct sensor mounting without a flange on the top, simplifying the on-site installation process. The sensor housing is made of imported ASA material, which has strong anti-aging and anti-corrosion capabilities and can effectively resist harsh environments such as salt spray. The overall protection level can reach IP65 or above, which can be placed in the open environment for a long time, reducing the later equipment maintenance costs and providing reliable data support for long-term monitoring of various outdoor meteorological environments.
