BeiDou Weather Stations Enable All-Weather, Precise Meteorological Monitoring in Signal-Free Zones

BeiDou weather stations are automated monitoring devices powered by BeiDou-3 short-message communication technology. Capable of collecting eight types of meteorological and environmental data continuously around the clock, they effectively solve the challenge of monitoring weather in remote areas with no or weak network coverage, providing reliable data support for weather forecasting and environmental early warnings.

As a new generation of domestically developed automated weather monitoring equipment, these stations deeply integrate BeiDou-3 regional short-message communication technology with professional meteorological monitoring capabilities. By eliminating reliance on network signals, they are suitable for a wide range of complex field monitoring scenarios. The devices operate autonomously and transmit data in real-time; equipped with intelligent monitoring modules for precise data acquisition, they conduct 24-hour environmental monitoring, effectively filling the gap in weather monitoring for remote areas with poor or no signal and overcoming the limitations of traditional monitoring equipment.

Compared to traditional ultrasonic weather stations, BeiDou weather stations feature comprehensive optimizations in technical principles and hardware structure. Eliminating the need for high-precision timers, the design fundamentally avoids measurement errors caused by sensor startup delays, circuit demodulation deviations, and ambient temperature fluctuations, thereby significantly enhancing data acquisition accuracy. The device utilizes an integrated "eight-element" sensor capable of simultaneously monitoring eight core parameters: ultrasonic wind speed and direction, temperature, humidity, atmospheric pressure, optical rainfall, total solar radiation, and negative oxygen ions. It outputs complete monitoring data via a digital communication interface, offering broader monitoring dimensions and higher data output efficiency.

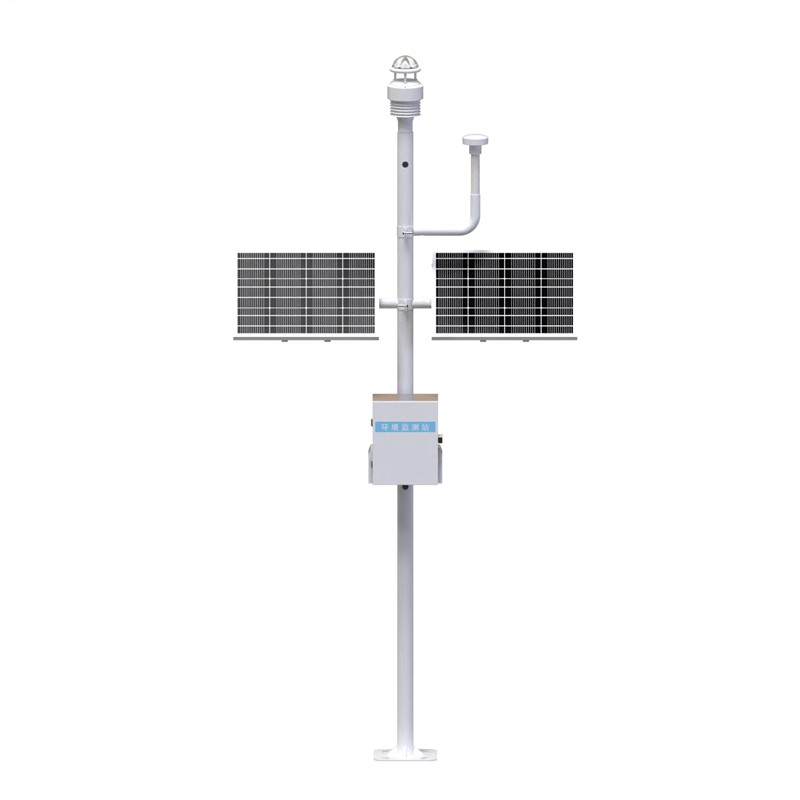

The hardware structure and material design further enhance the device's suitability for outdoor use. The station features a concealed ultrasonic probe design beneath the top cover, effectively preventing monitoring interference caused by accumulated rain or snow and wind obstruction, ensuring stability during adverse weather conditions. It comes with a two-meter carbon steel mount that allows for direct slip-fit installation without the need for flanges, simplifying the setup process. The sensor housing is made of imported ASA material, offering excellent resistance to salt spray and aging; with an ingress protection rating exceeding IP65, the device is built for long-term operation in harsh outdoor environments such as high-altitude plateaus, deserts, and coastal regions. The equipment has currently been widely deployed across many regions nationwide, consistently providing stable and accurate data support for weather forecasting, ecological and environmental monitoring, disaster early warning, and other operations.
