Speed enforcement system

Speed enforcement system Product Introduction:

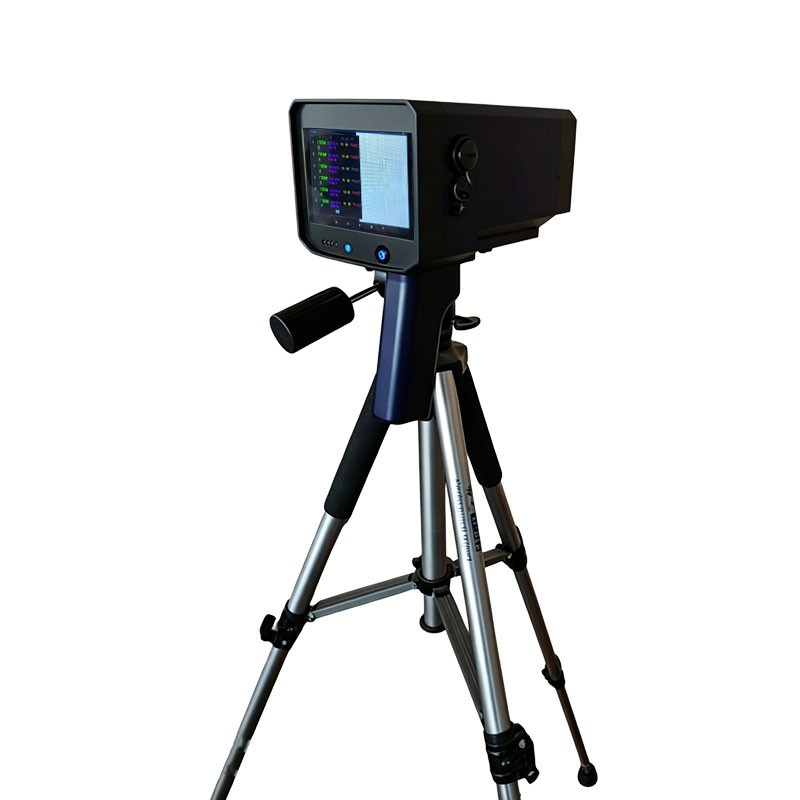

The LDS3 type Speed enforcement system is a handheld photo radar speed detector. This radar utilizes the Doppler principle to measure the radial velocity of moving targets on the ground, combined with a high-definition camera to capture images of vehicles violating traffic rules, preserving ample original evidence. Speed enforcement system is flexible, mobile, and has a fast response time, making it suitable for various locations requiring vigilant traffic management, such as highways, railways, airports, ports, factories, and mines. It is particularly suitable for dynamic patrols on highways. It can also be used to measure the radial velocity of other moving ground targets. The LDS3 speed radar is equipped with a 12V 5800mAh lithium battery, which provides over 4 hours of continuous operation on a single charge, making it convenient and durable.

Speed enforcement system Technical Specifications:

1. Performance/Functions of Speed enforcement system

(1) Radar speed measurement accuracy: ±1km/h

(2) Radar speed measurement range: 5-255km/h

(3) Radar range: ≥100m for large vehicles, ≥70m for small vehicles

(4) Radar response time: Minimum 50 milliseconds

(5) Display screen: 5-inch touchscreen, displays vehicle speed, monitoring footage, and captured images in real time

(6) Speeding record: Captures speed and images of vehicles on the road anytime, anywhere from a stationary state. The capture location can be freely controlled according to the selected mode, ensuring all images are valid. Captured images can be queried and printed at any time.

(7) Capture Pixels: 3 megapixels optional; capture position 15-50 meters to clearly see license plates.

(8) License Plate Recognition: License plate recognition algorithm.

(9) Parameter Settings: Users can set information such as management department, speed limit, starting speed, road name, and capture mode.

(10) Printing: Equipped with a portable printer; users can select the current vehicle speed or any recorded speed to print; the printed paper includes the time, location, management department, speed limit, speed, overspeed ratio, management regulations, and (license plate number editing). (11) Tripod: Supports tripod mounting (optional)

2. Electrical Parameters of Speed enforcement system

(1) Operating Voltage: Nominal value +12VDC, maximum value +16V, minimum value +10.5V

(2) Operating Current: When the operating voltage is +12VDC, the operating current is ≤0.5A

(3) Microwave Transmission Frequency: K-band 24050MHz~24250MHz

(4) Microwave Transmission Power P: ≤30mW

(5) Radar Beam Width: At 3dB, ±3°

(6) Polarization: Right-hand circular polarization

(7) Rated burn-out power of receiver diode: 100mW

3. Environmental parameters of Speed enforcement system

(1) Allowable operating temperature -30~+60°C

(2) Allowable storage temperature -40~+70°C

4. Dimensions of Speed enforcement system

(1) External dimensions: 130*199*243mm

(2) Color: Black

(3) Packaging: Dedicated equipment box
