location：Home>Product>Weather Station>Handheld Weather Station>Nine Elements handheld weather station

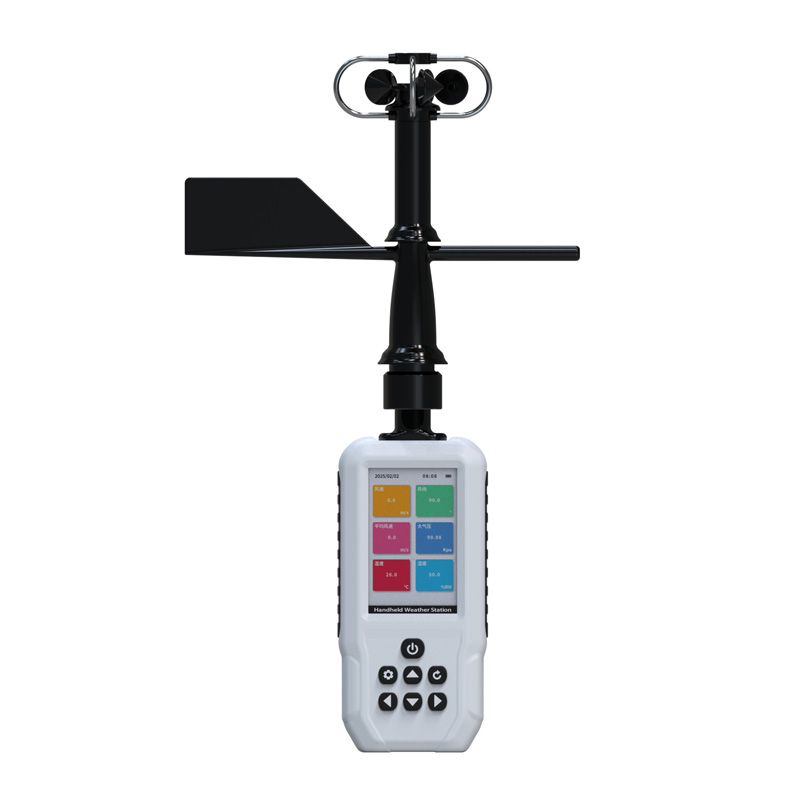

Nine Elements handheld weather station
Model：FT-SQ9
Brand：fengtu
1.Nine Elements handheld weather station product introduction It is a movable meteorological observation instrument that is easy to carry, simple to operate, and integrates multiple meteorological elements.The system uses precision sensors and smart chips, which can accurately measure
Get a Free Quote- Product details
- Related products
- Related articles
1.Nine Elements handheld weather station product introduction
It is a movable meteorological observation instrument that is easy to carry, simple to operate, and integrates multiple meteorological elements.The system uses precision sensors and smart chips, which can accurately measure elements such as wind speed, wind direction, average wind speed, temperature, humidity, atmospheric pressure, altitude, thermal index, wet bulb temperature, wave height, dew point temperature, wind chill index, GNSS three-mode positioning and other factors.The built-in large-capacity FLASH memory chip can store meteorological data for at least one year; the Type-C communication interface is convenient for users to further process and analyze meteorological data.
This instrument can be widely used in meteorological, environmental protection, airports, agriculture and forestry, hydrology, military, warehousing, scientific research and other fields.
2.Nine Elements handheld weather station feature
1.The LCD screen is 3.5 inches, which can display elements such as wind speed, wind direction, average wind speed, temperature, humidity, atmospheric pressure, altitude, thermal index, wet bulb temperature, wave height, dew point temperature, wind chill index, GNSS three-mode positioning and other factors.☆
2.Built-in electronic compass to realize 360-degree monitoring of wind direction and add the switching between automatic and manual wind direction modes. ☆
3.Large-capacity data storage, up to 40,000 meteorological data can be stored (data recording interval can be set between 1 and 60 minutes).
4.★Supports viewing historical data.
5.★Type-C communication interface for retrieving internally stored data.
6.★GNSS tri-mode positioning, GNSS timing, high positioning accuracy and speed (single BeiDou optional).
7.★3800mAh lithium battery, low-power design, long standby time, 18 hours of continuous operation.
8.Scientifically designed and portable structure.
9.★ External DTU-4G module for uploading to the cloud platform. The 4G module allows for easy replacement of the IoT SIM card.
10.Optional tripod bracket.
3.Nine Elements handheld weather station technical parameters
| Meteorological parameters | Measurement elements | Measurement range | Accuracy | Resolution | unit |
| Wind speed | 0-60 | ±0.3 | 0.01 | m/s | |
| wind direction | 0-360 | ±3 | 0.1 | Spend | |
| Average wind speed | 0-60 | ±0.3 | 0.01 | m/s | |
| temperature | -40-125 | ±0.2 | 0.1 | ℃ | |
| humidity | 0-100 | ±2 | 0.1 | %RH | |
| Atmospheric pressure | 30-110 | ±0.1 | 0.01 | kPa | |
| altitude | 0-9165 | ±1 | 1 | m | |
| Thermal index | -40-140 | ±0.2 | 0.1 | ||
| Wet bulb temperature | -29-70 | ±0.2 | 0.1 | ℃ | |
| Wave high | 0-14 | ±0.2 | 0.1 | m | |
| Dew point temperature | 0-70 | ±1 | 0.1 | ℃ | |
| Wind-cold index | 0-5 | ||||
| GNSS | Three-mode positioning | ||||
| Screen | 3.5-inch LCD screen | ||||
| Battery | 3800mAh lithium battery | ||||
| communication | Type-C interface | ||||
| DTU-4G upload cloud platform | |||||
| storage | 40,000 data | ||||
| Host size | 167*80*30mm | ||||
| Overall size | 370*208*80mm | ||||
| gross weight | 363.2g | ||||
4.Nine Elements handheld weather station configuration instructions
| Model elements | SQ9 |
| Wind speed | √ |
| wind direction | √ |
| Average wind speed | √ |
| temperature | √ |
| humidity | √ |
| Atmospheric pressure | √ |
| altitude | √ |
| Thermal index | √ |
| Wet bulb temperature | √ |

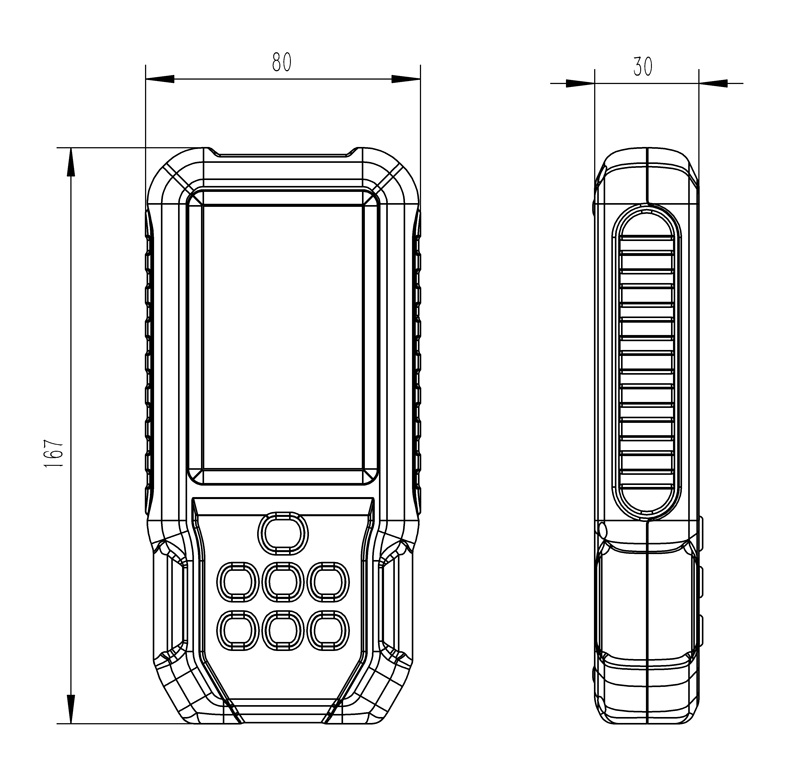

5.Nine Elements handheld weather station appearance and size

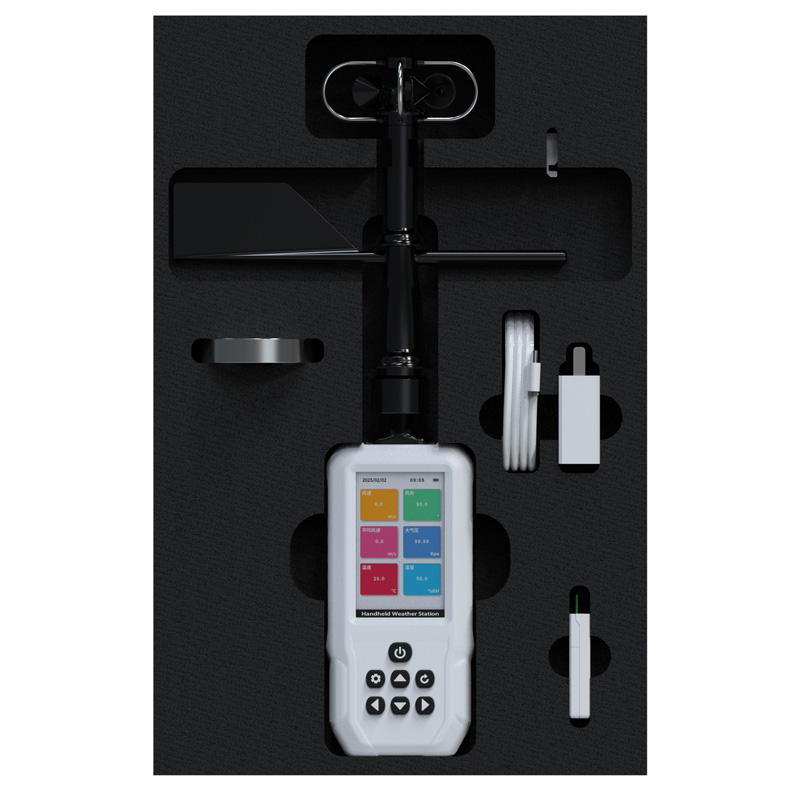

6.Nine Elements handheld weather station whole box accessories
①Main unit
②DTU-4G upload module
③Data cable
④Charging adapter
⑤Wind direction calibration accessories

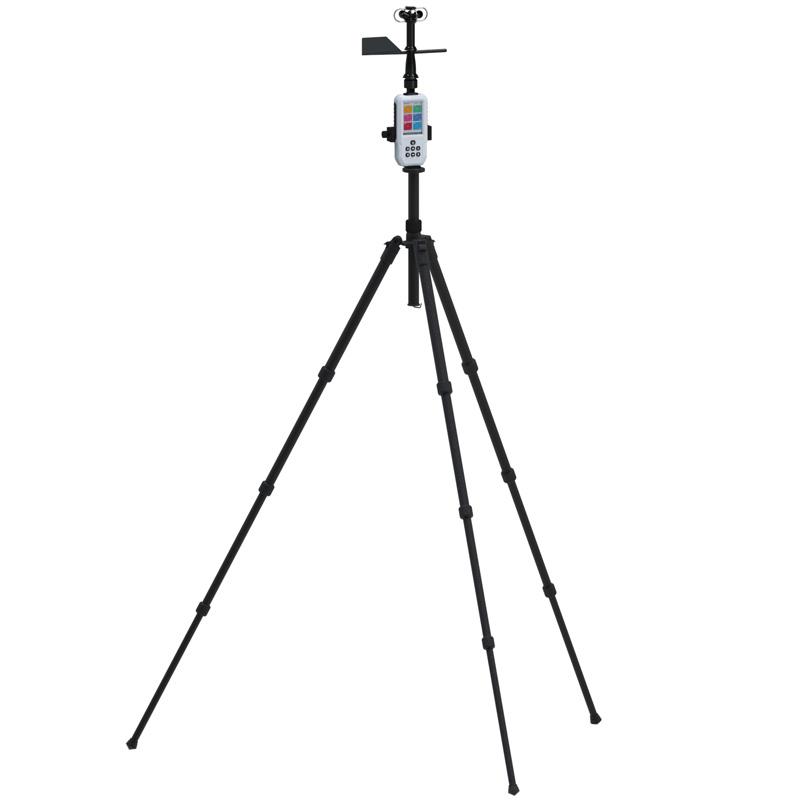

7.Nine Elements handheld weather station optional bracket
Address:https://www.fengtusensor.com/Handheld-Weather-Station/Nine-Elements-handheld-weather-station.html
